NEW KENT USA KHV-400 CNC HORIZONTAL/VERTICAL MACHINING CENTER
Kent CNC has introduced the New Kent CNC KHV-400 Combination Horizontal/Vertical Machining Center with the industry standard 0i-MD control by FANUC. Kent CNC sets a new industry standard with their latest combination dual spindle machining center, model KHV-400. By combining a horizontal machining center with a vertical machining center, this cutting-edge versatile machining center allows for faster setups and parts loading and unloading, improved accuracy, floor space maximization, and capital investment reduction.

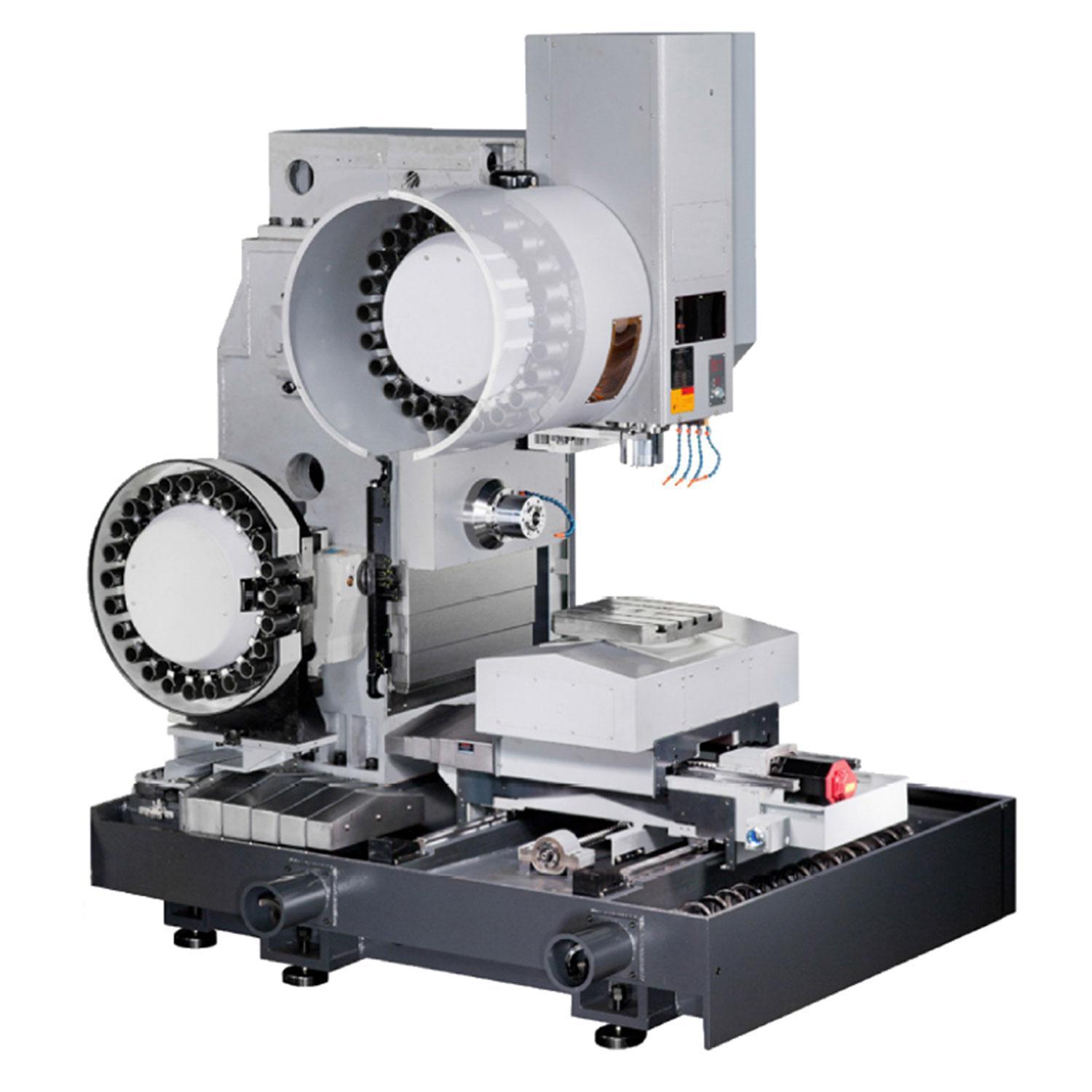

Two Spindles are Better than One
It includes a powerful 10 HP (Horizontal)/15 HP (Vertical), 10,000 RPM (Opt. 12,000) spindle with Direct Drive Spindle Motor as standard. Both the horizontal and vertical travels are 19.7” X-axis by 19.7” Y-axis by 17.8” Z-axis with fast two-set 24-tool ATC. In addition, the rapid traverse for each axis is 36m/min that is upgradeable to up to 48m/min. The rotary table is equipped with an optical scale.
This Meehanite certified machine allows for five-sided machining in one setup for fast production and accuracy all in a compact floor space of 82” x 114”.
SPECIFICATIONS
Table Size 19.68" x 19.68"
Travels
X Axis 19.7"
Y Axis - Vertical 19.7"
Y Axis - Horizontal 19.7"
Z Axis - Vertical 17.7"
Z Axis - Horizontal 17.8"
Vertical Spindle Center To Column 25.78"
Vertical Spindle Nose To Table 4.9" - 22.6"
Horiz. Spindle Center To Table Top 2.95" - 20.67"
Horiz Spindle Nose To Table Center 4.9" - 24.6"
Table Load Capacity 772 Lbs
Spindle Taper BT40 / CAT40/ ISO40
Spindle Speeds (Vert/Horiz) 10,000 RPM (Opt 12,000 RPM)
Main Motor 10/15 HP Direct Drive
ATC Magazine For Arm Type 20/24 (Opt 24/40)
Rapid Traverse 32 M/Min (Opt 48 M/Min)
Cutting Feed Rate 1-15,000 MM/Min
Machine Weight 18,739 Lbs
Approx. Dimensions 114" x 106" x 115"
