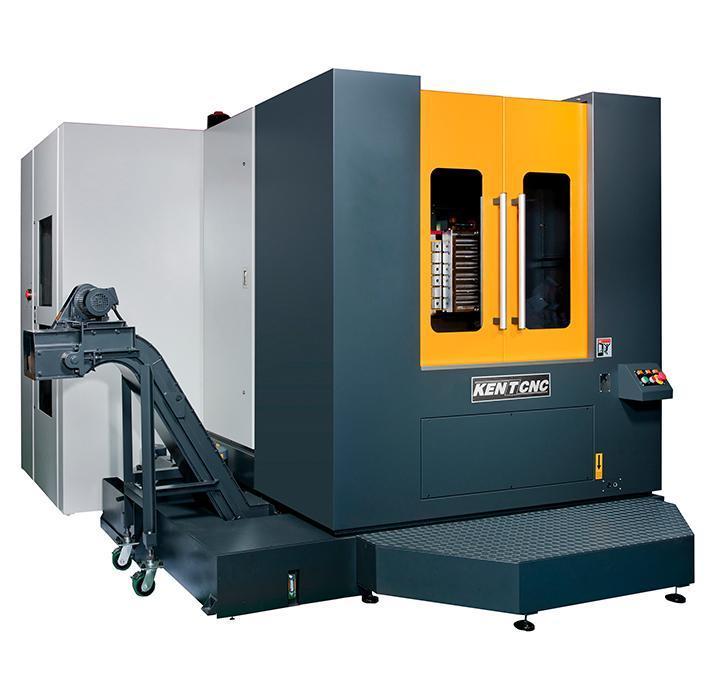

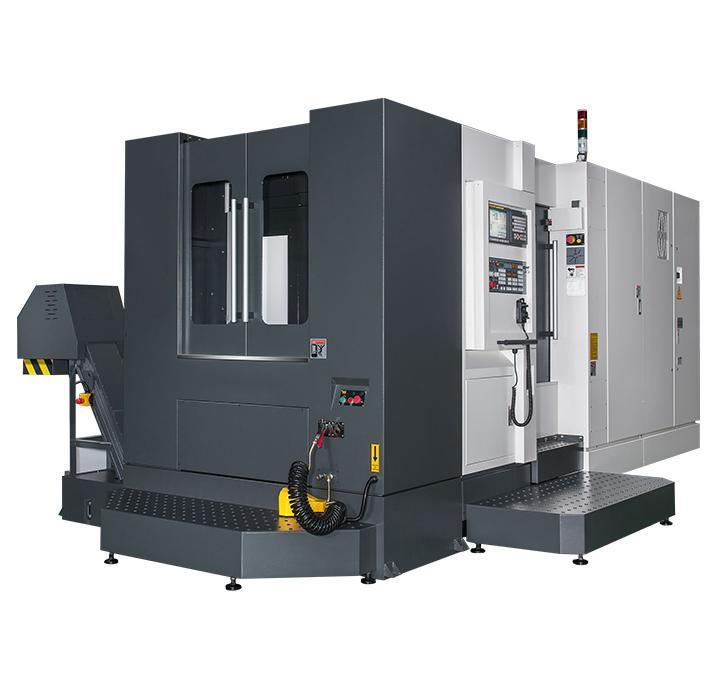

NEW KENT USA KMH-1000 CNC HORIZONTAL MACHINING CENTER
Year
Not provided
Stock #
19243
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW KENT USA KMH-1000 CNC HORIZONTAL MACHINING CENTER
Kent CNC Horizontal Machining Centers with automatic pallet changer are designed for higher efficiency and reliability. With a horizontally oriented spindle, the tool cuts the workpiece on its side. This allows for the chips to fall away from the work table. HMC’s are also designed to be more rigid and with larger tool storage capacities. This design allows for increased repeatability and overall versatility. Horizontal Machining Centers without pallet changers are also available if you are just looking for a more rigid solution over a vertical machining center.
Proven Horizontal Machining Center Design
The Kent CNC Horizontal Machining Center Series with automatic pallet changer combine proven machine design with advance technology in control and manufacturing. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike. The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around. Upgrade your global competitiveness today.
-
Travels of up to 60.2″ x 49.2″ x 49.2″
-
Up to 31.5″ x 31.5″ rotary table size
-
Up to 4,409 lbs work load
-
Fanuc 0i-MD controller
-
Full package of Fanuc servo system
SPECIFICATIONS
Pallet Size 39.37" x 39.37"
Auto Pallet Changer Yes
Travels
X Axis 51.9"
Y Axis 39.4"
Z Axis 39.4
Spindle Center To Work Table 2" - 51"
Spindle Nose To Work Table Center 8.66" - 57.87"
Max Load Weight 4409 Lbs
Spindle Taper BT-50
Spindle Speed 6,000
Spindle Motor 15 / 18.5 HP (18.5/22 HP)
Rapid Traverse 15 / 15 / 12 M/Min
Cutting Feedrate 1 - 6,000 mm/min
Tool Selection 40 ATC (Opt 60 or 90 or 120)
Pallet Change Time 12 Sec
Approx. Dimensions 327.6" x 166.5" x 223"
Approx. Weight 68,343 / 77,161Lbs
