Equipped With

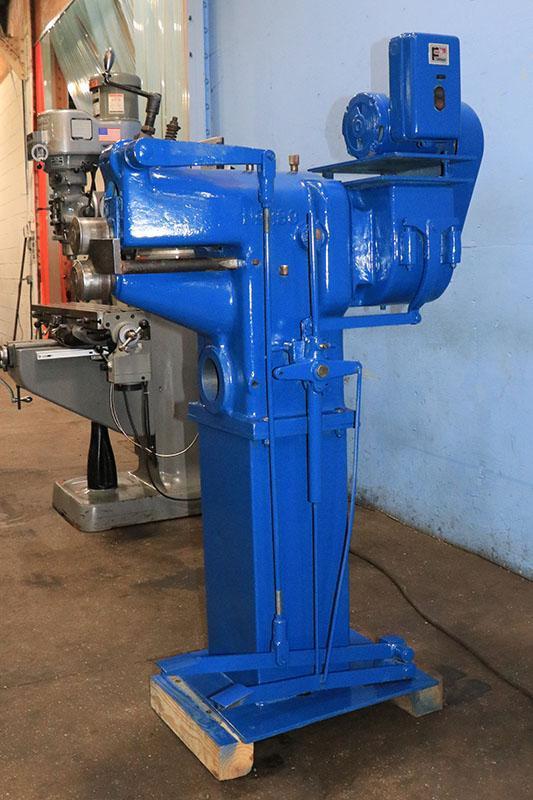

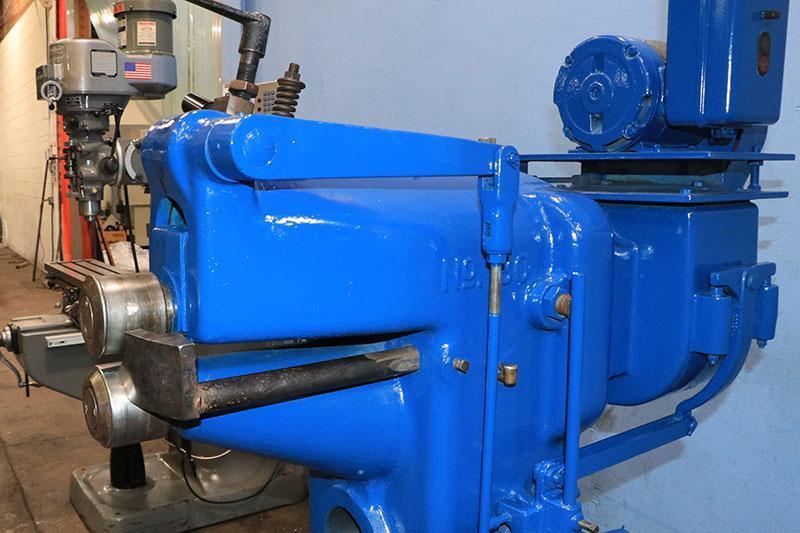

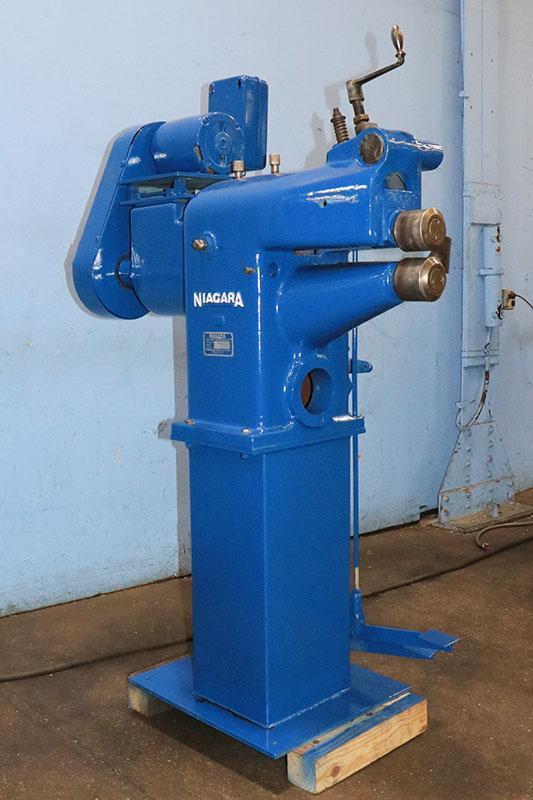

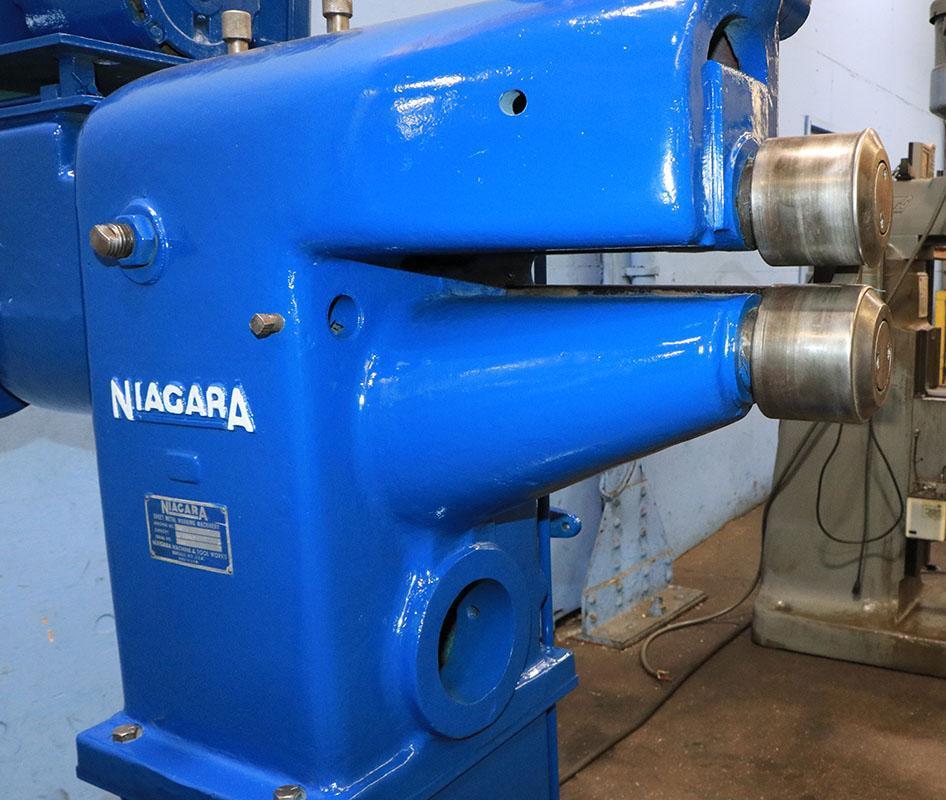

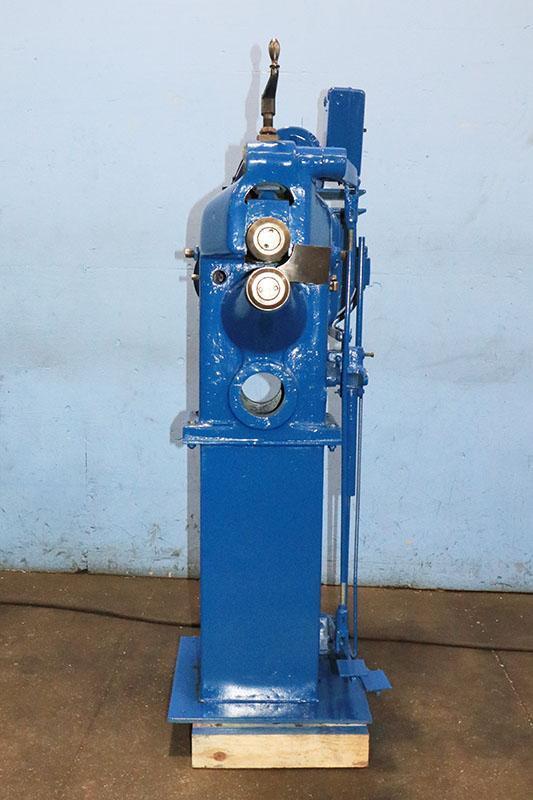

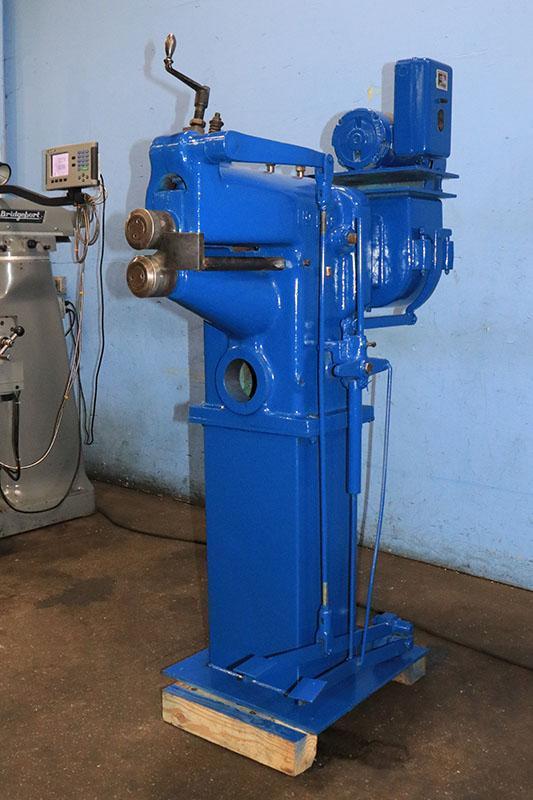

NIAGARA MODEL 180 MOTORIZED CCOMBINATION ROTARY MACHINE

NEW 1972

SPECIFICATIONS:

BURRING, TURNING, WIRING, & BENDING:  14 GA (MILD STEEL)

CRIMPING:                             16 GA (MILD STEEL)

SLITTING:                             12 GA (MILD STEEL)

CIRCLE CUTTING THICKNESS:             12 GA (MILD STEEL)

CIRCLE CUTTING DIAMETER RANGE:        6" TO 18"

FLANGING THICKNESS:                   14 GA (MILD STEEL)

FLANGE HEIGHT (MAX):                  ¾"

FLANGING DIAMETER RANGE:              13" TO 48"

 SPEED:                               15 FPM

DIAMETER OF SHAFTS:                   1 7/8"

DISTANCE BETWEEN SHAFTS (CENTERS):    3 ½"

DISTANCE CENTER OF ROLLS TO FRAME:    12 ¼"

LENGTH OF SHAFT ENDS FOR ROLLS:       3"

FLOOR SPACE (APPROX)                  22"L X 42"D X 64" H

WEIGHT (APPROX)                       1000 LBS

VOLTAGE                               230/460 - 3 PHASE

EQUIPPED WITH:

- MISC. TOOLING (As Shown)
