Equipped With

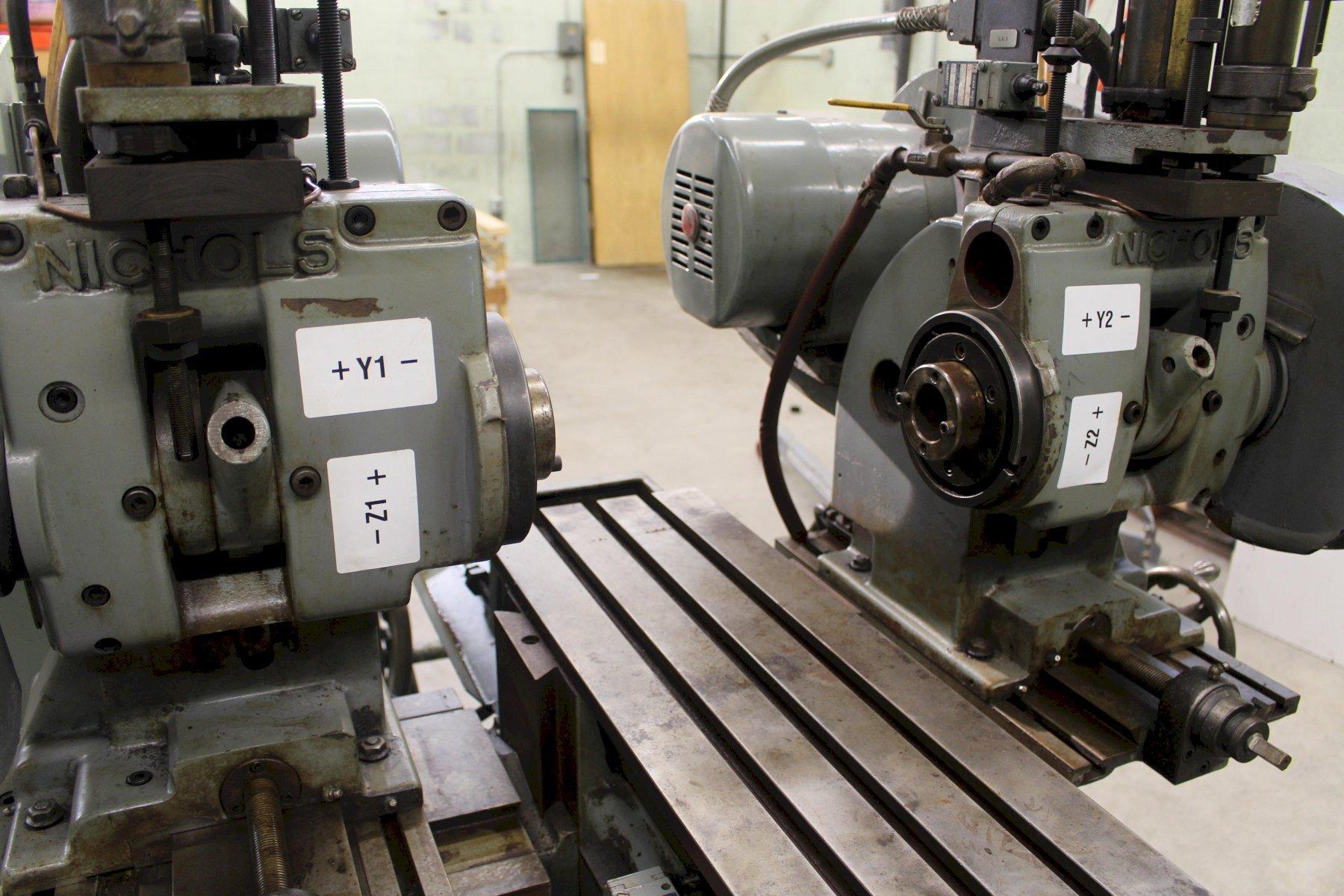

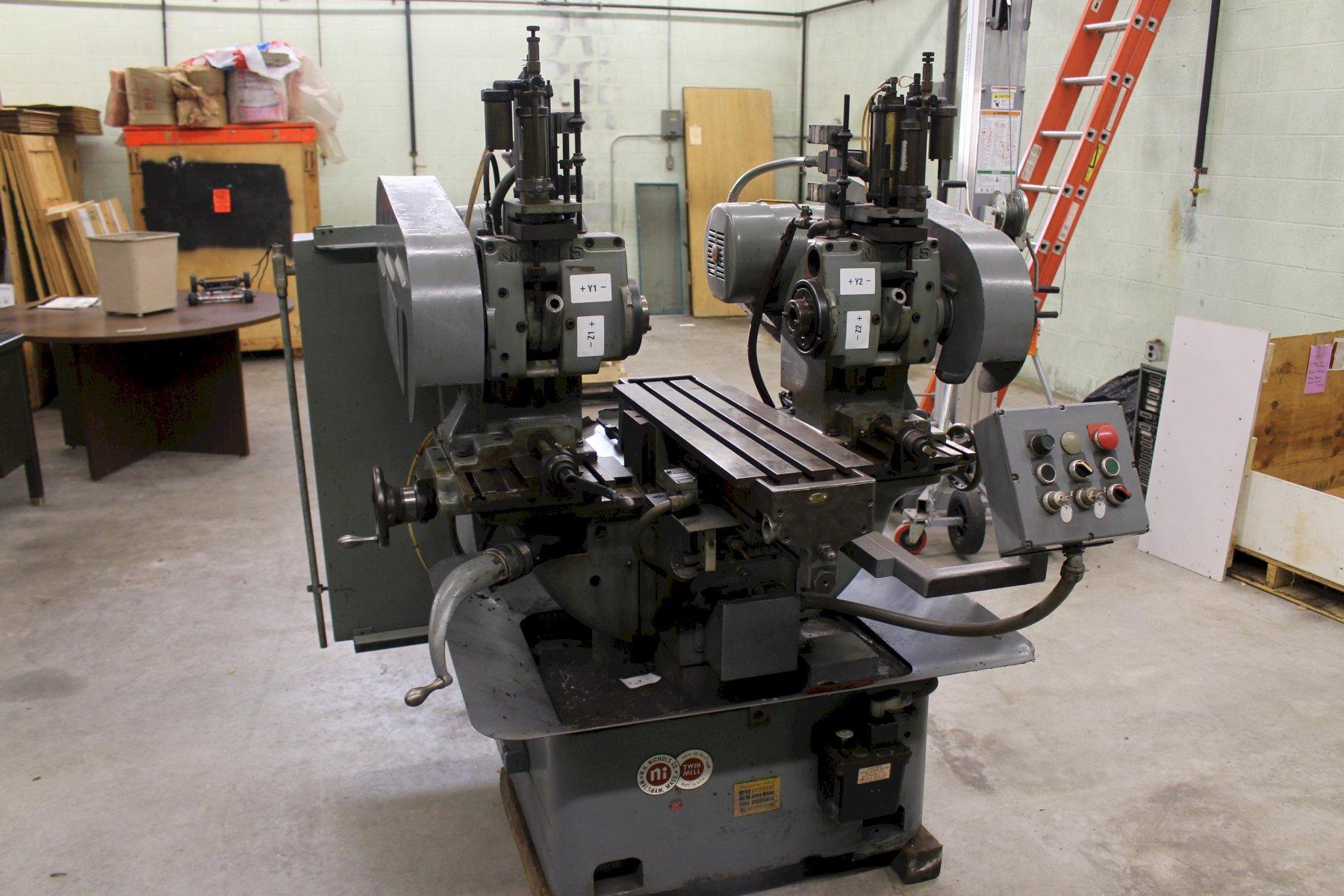

NICHOLS TWIN MILL DUPLEX PRODUCTION MILL WITH RISE AND FALL

New 1977

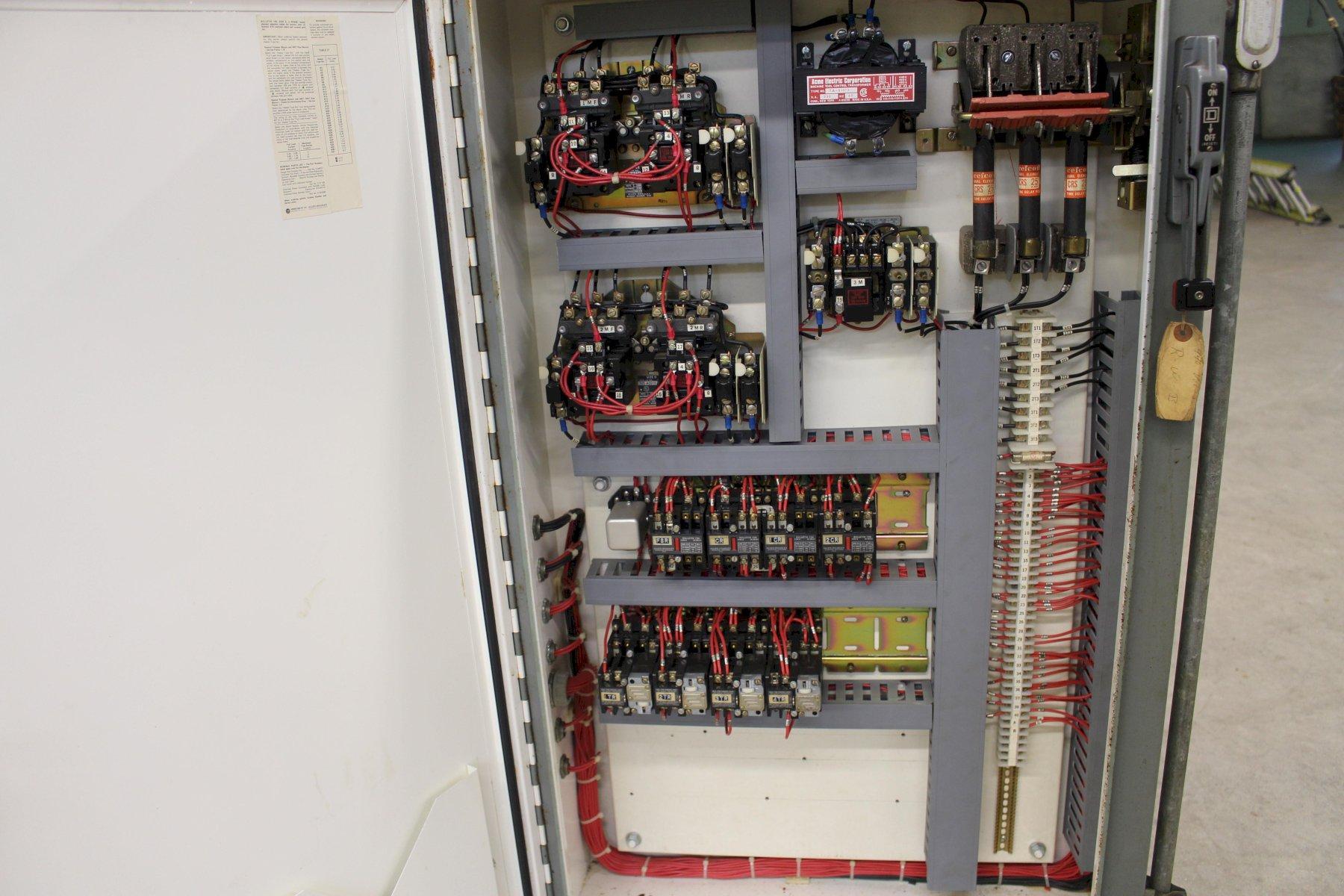

Motor Driven with (2) 3 HP, 3-Phase, 60 Cycle, AC Motor and Controls

EQUIPPED WITH:
Rise & Fall
Coolant
Automatic Lubrication

SPECIFICATIONS:
Table Size 10" x 33"
Table Travel 15"
Spindle Nose Bore 1"
Spindle Nose Taper 40 MT
Feed, Infinitly Variable 0-50 IPM
Rapid Traverse 75-120 PSI
Height Spindle Center Lines Above Table
Min. 2"
Max. 12"
Spindle Nose Separation
Min. 5"
Max. 16"
Spindle Speeds 55 to 2050 RPM
Max. Cutting Stroke 15"
Max. Longitudinal Offset of Heads 8-1/4"
Max. Cutter Diameter 6"
Approximate Dimensions 65" x 65" x 63"H
Approximate Weight 2,200 Lbs.
