NO. 3A WARNER & SWASEY M3500 SADDLE TYPE TURRET LATHE

Manufacturer

Not provided

Model

3A

Year

1969

Stock #

19336

Condition

Good

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

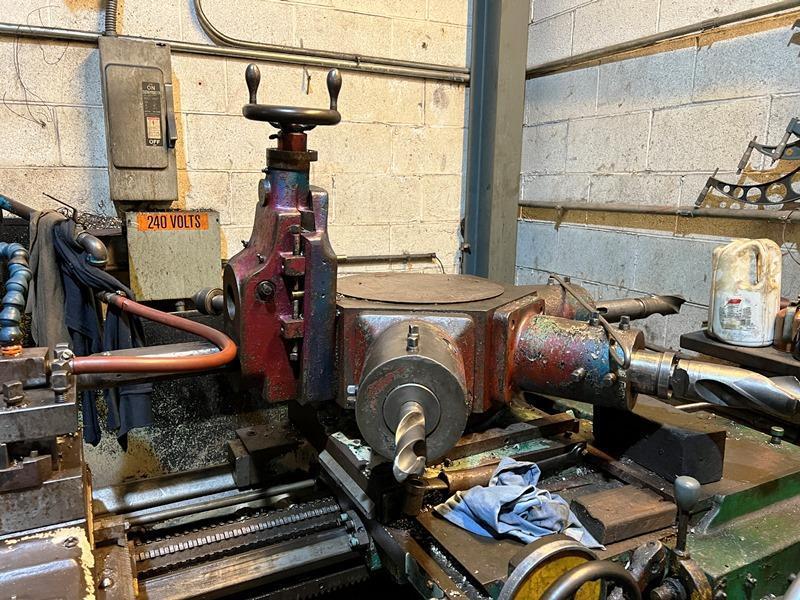

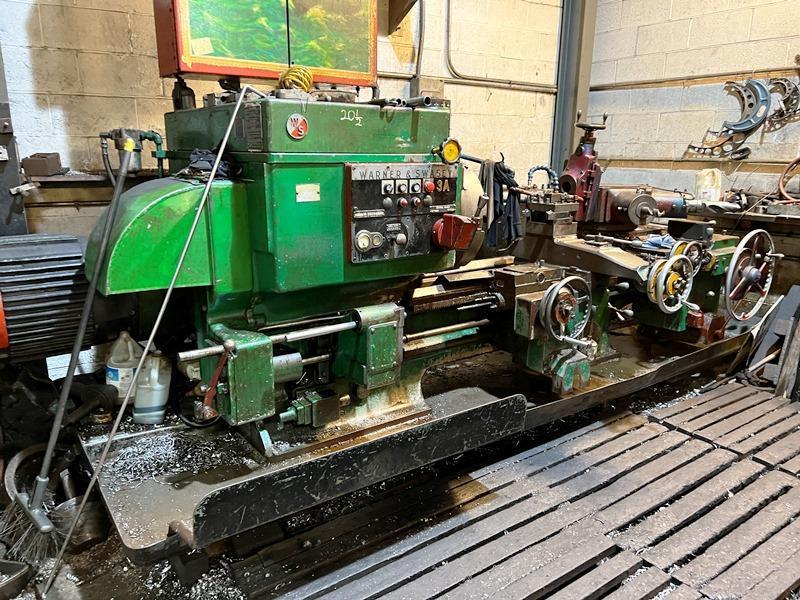

NO. 3A WARNER & SWASEY M3500 SADDLE TYPE TURRET LATHE

New 1969

Motor Driven with  40/20 HP, 3-Phase, 60 Cycle, AC Motor & Controls

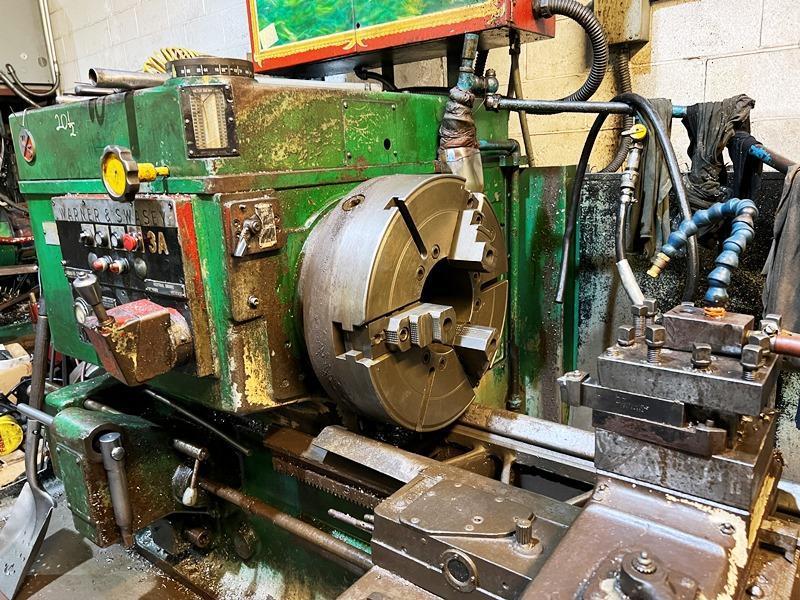

EQUIPPED WITH: 20" 3-Jaw Chuck, 4-Way Tool Post, Misc. Tool Holders, Hard Ways

SPECIFICATIONS:
Swing Over Bedways                                               24"
Swing Over Carriage                                               18"
Spindle Nose to Turret                                            58-3/4"
Hole Thru Spindle                                                   6-1/4"
Spindle Speeds  (32)                                               12 To 851 RPM
Carriage Longitudinal Feeds (16)                            .005 to .167 IPR
Carriage Cross Feeds   (16)                                     .002 to .082 IPR
Turret Longitudinal Feeds  (16)                              .005 to .167 IPR
Turret Cross Feeds  (16)                                         .003 to .096 IPR
Max. Turning Length                                              44-1/4"
Approximate Dimensions                                       193" x 84"
Approximate Weight                                              15,500 Lbs.

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
