Equipped With

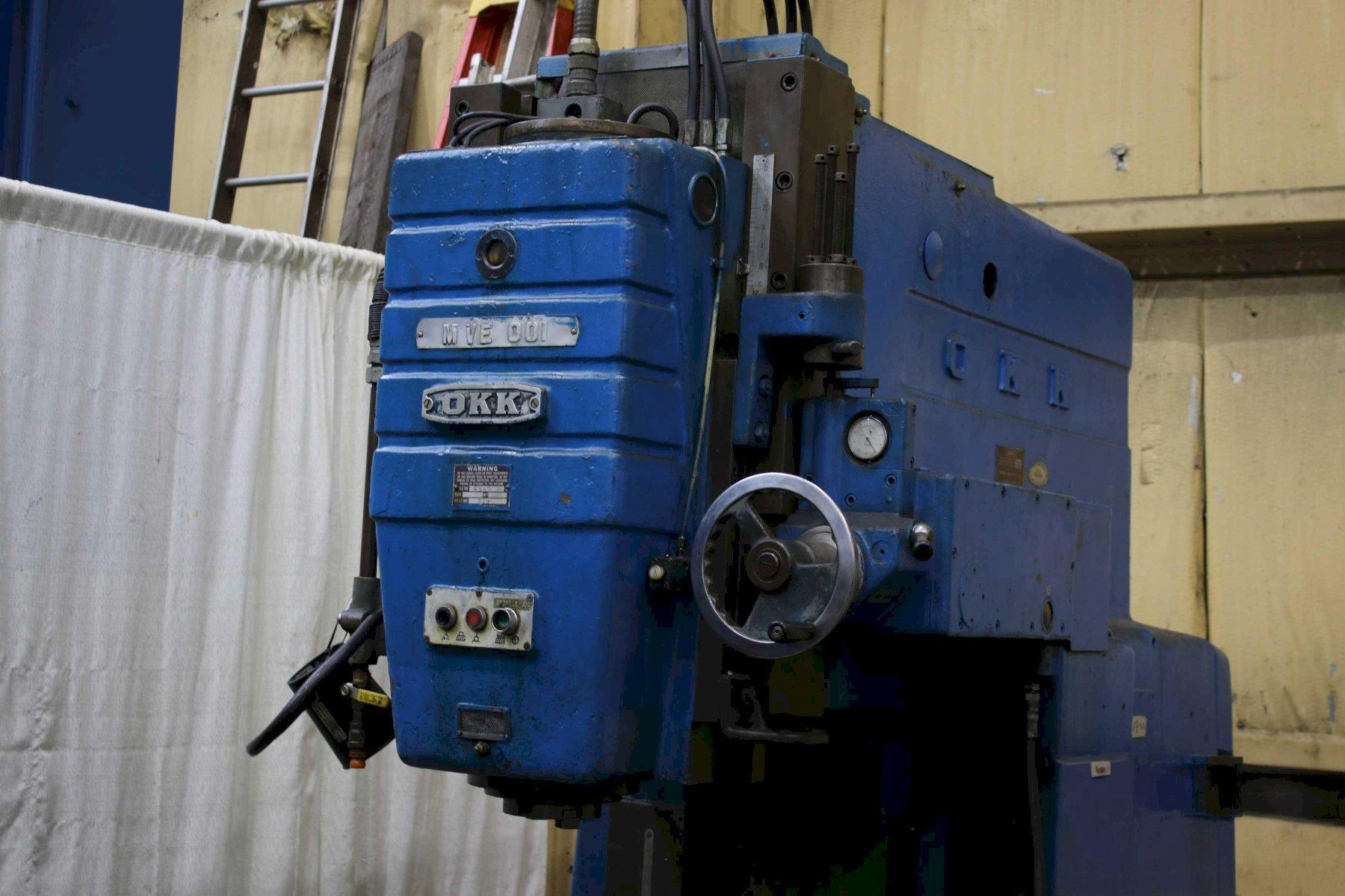

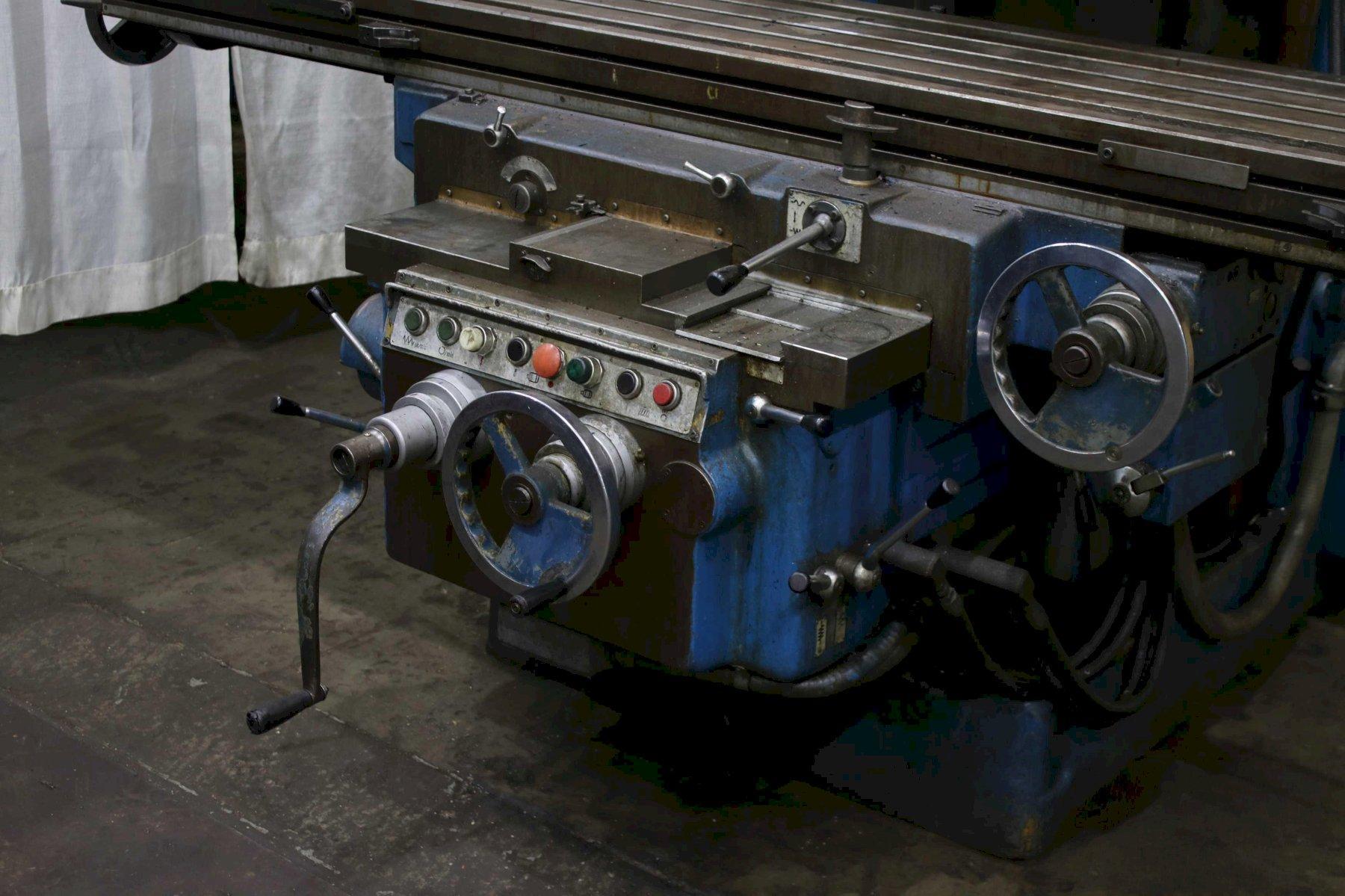

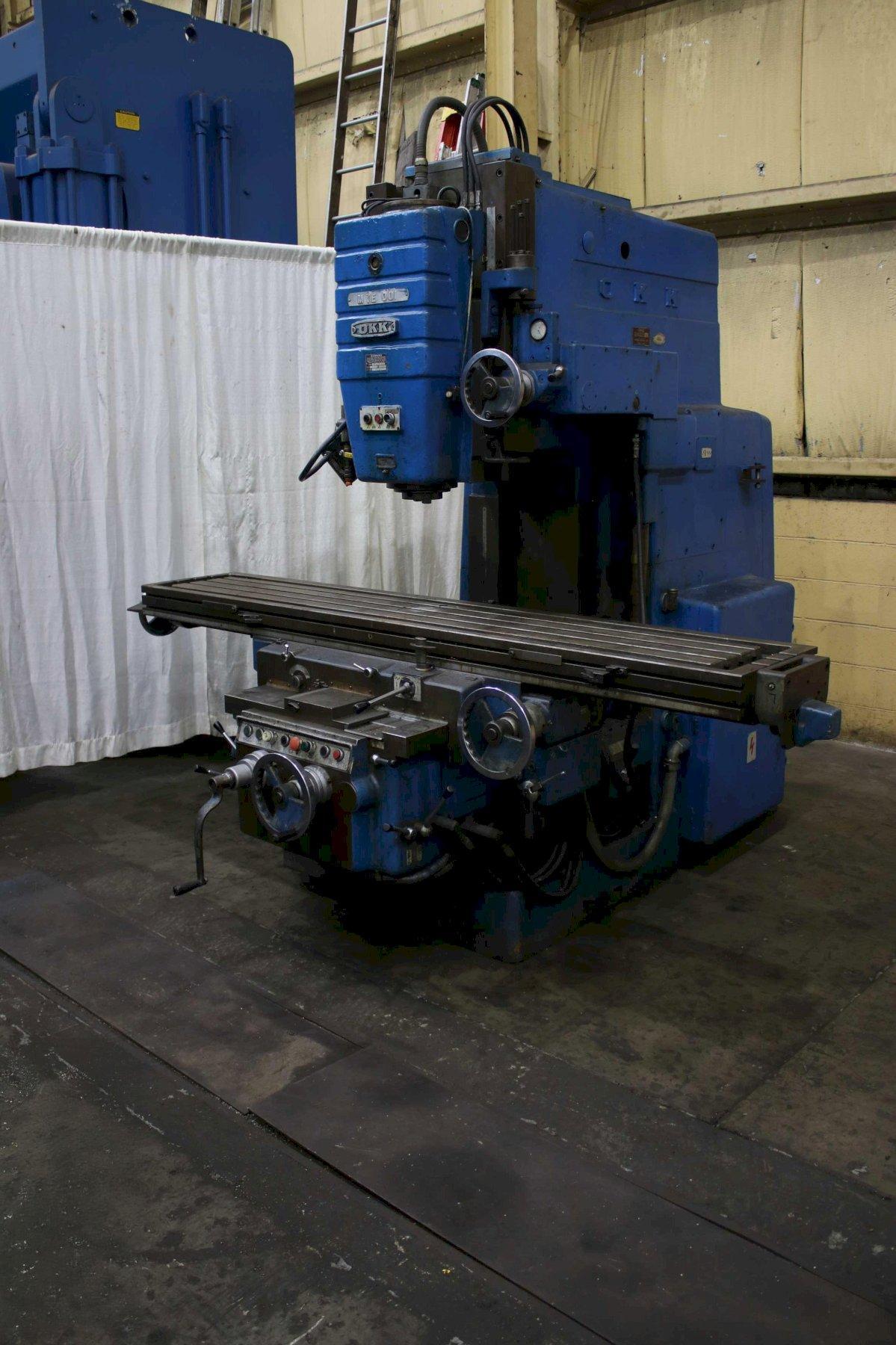

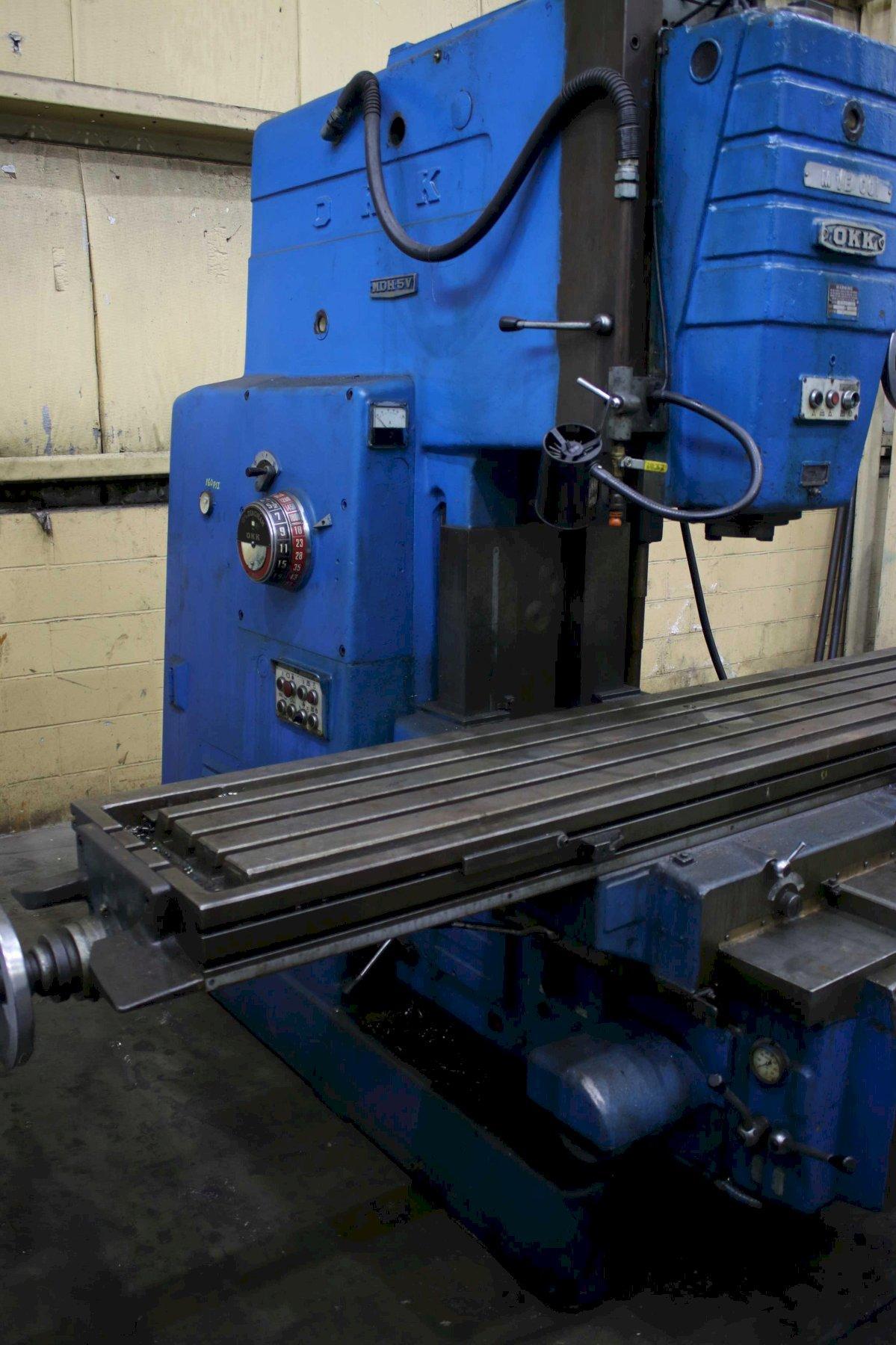

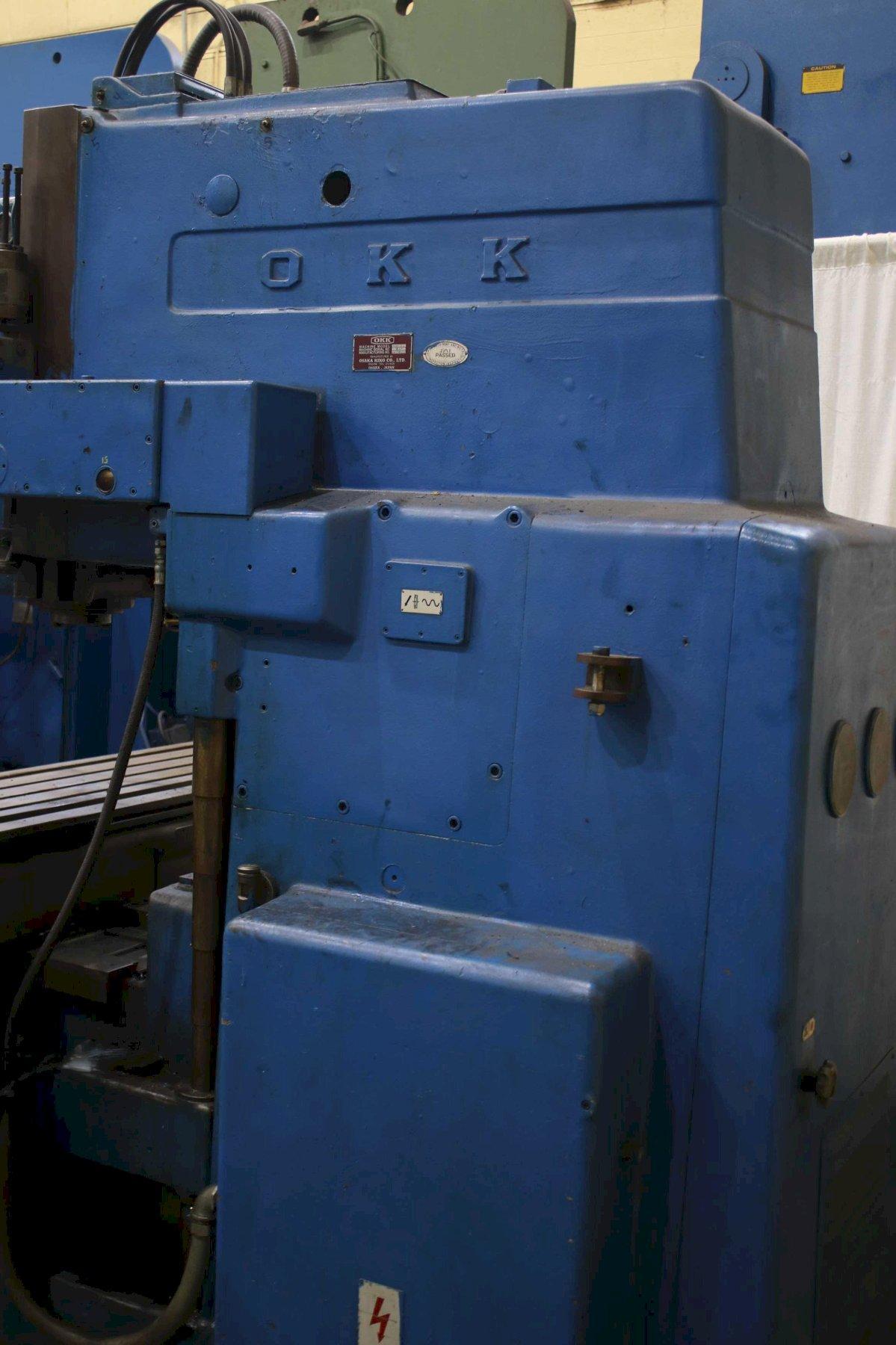

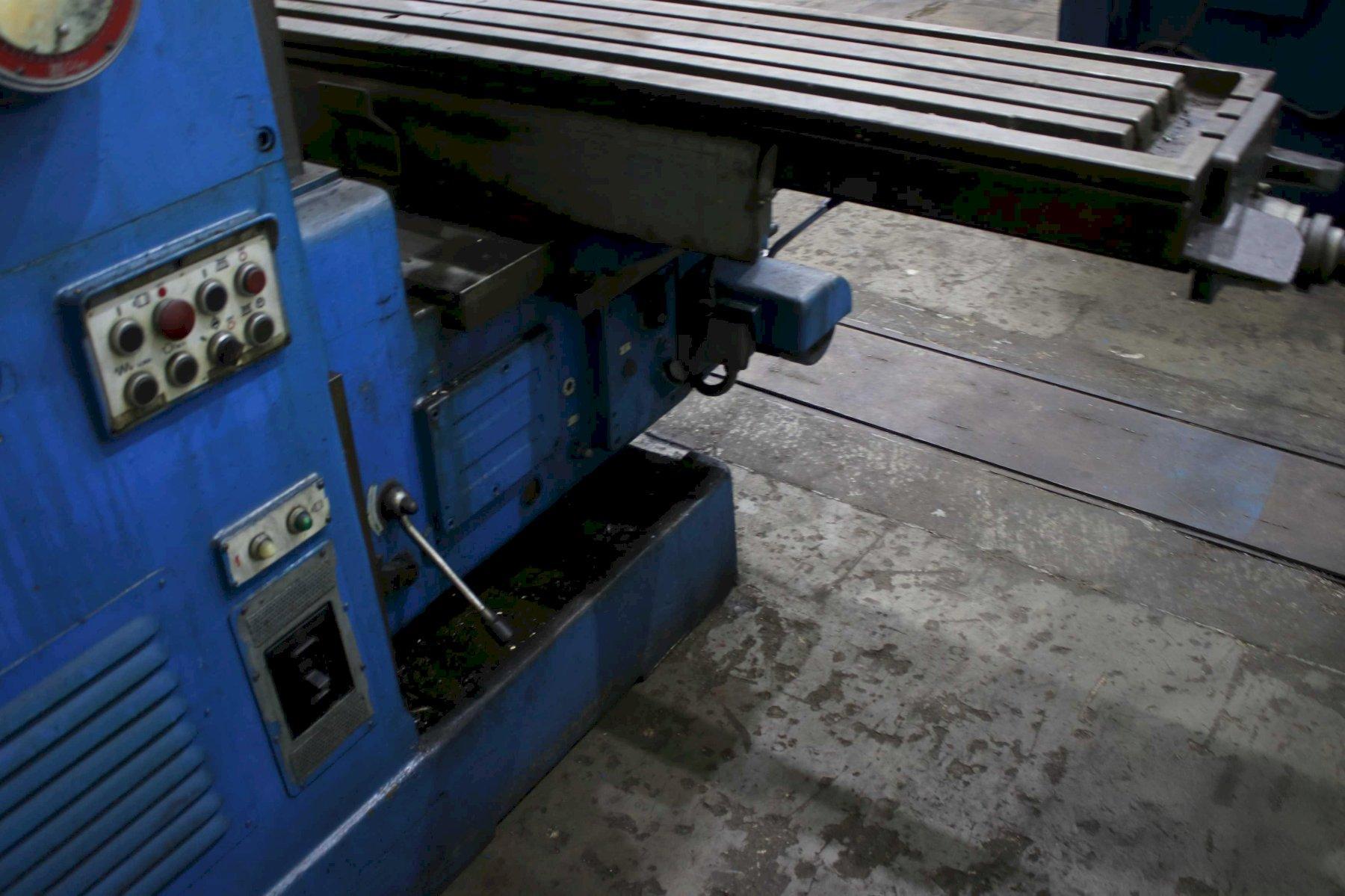

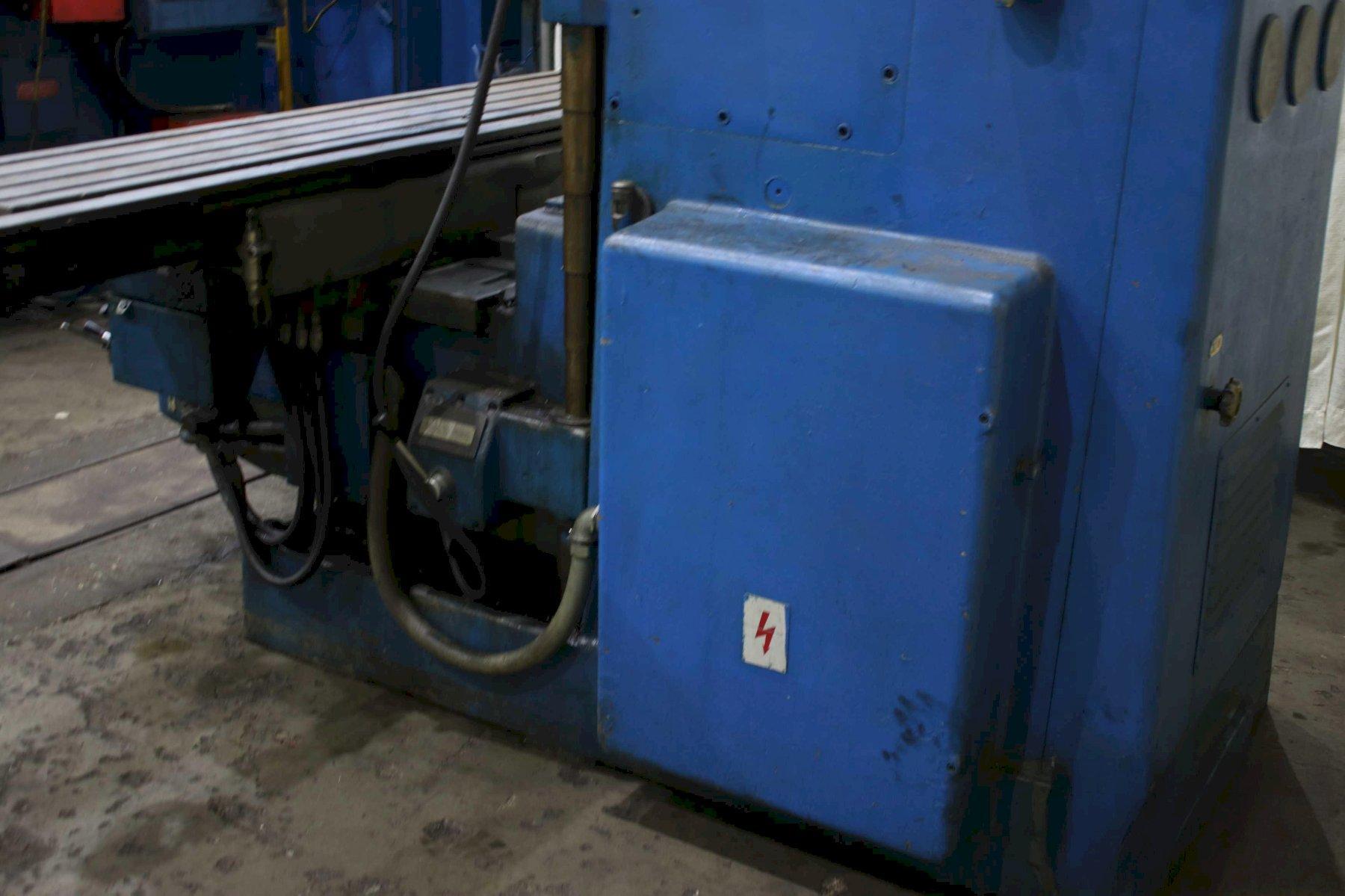

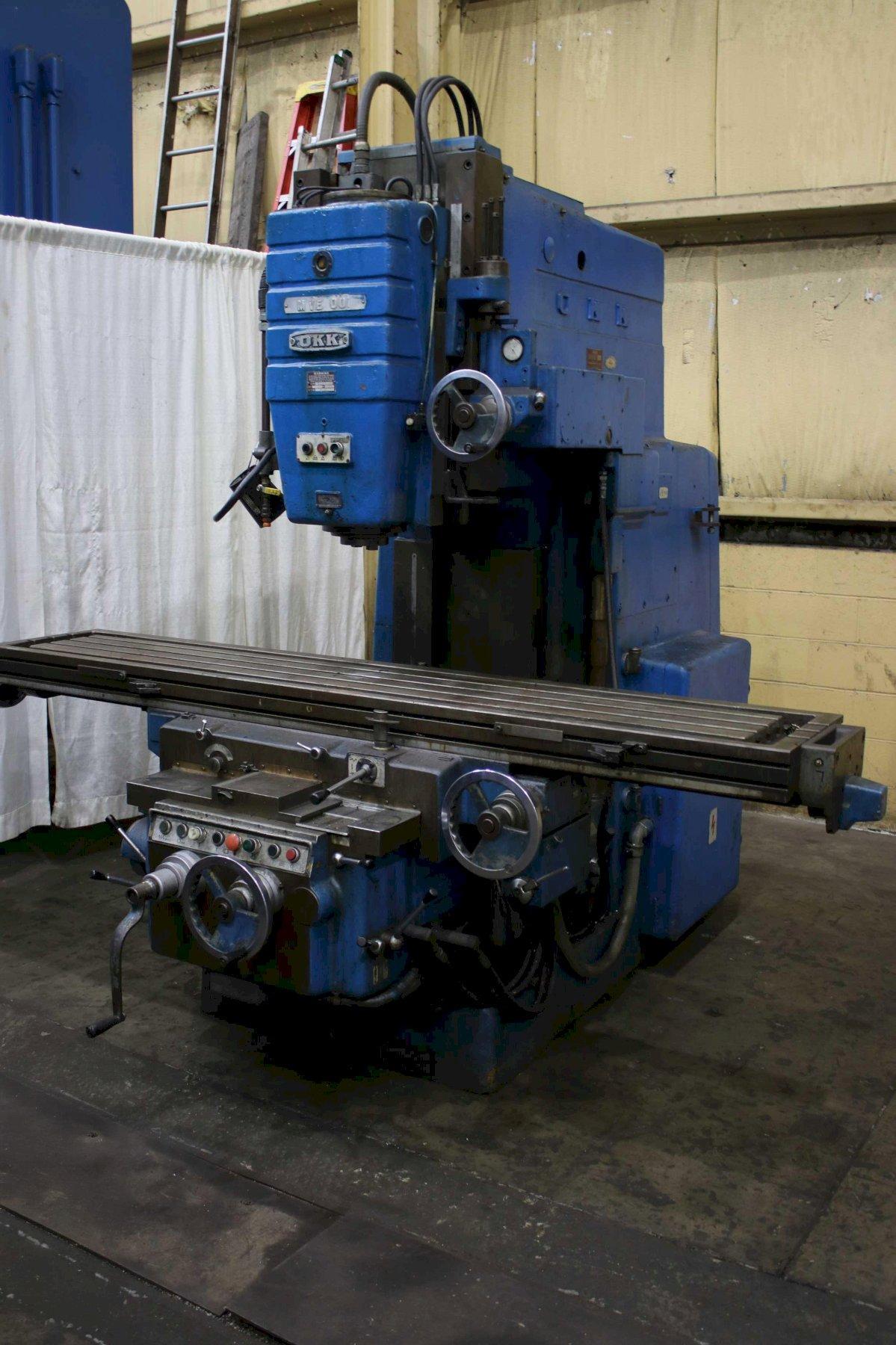

OKK MODEL MDH-5V HEAVY DUTY VERTICAL MILL


WORKING SURFACE OF TABLE .... 96" X 18"0 RPM
SPINDLE SPEEDS .............. (23) 18 TO 1800 RPM
LONGITUDINAL & CROSS FEEDS .. 3/8 TO 84 IPM
VERTICAL FEEDS .............. (32) 1/8 TO 84 IPM
LONGITUDINAL TRAVEL ......... 51-1/8"
CROSS TRAVEL ................ 15-3/4"
VERTICAL TRAVEL OF KNEE ..... 15-3/4"
VERTICAL HEAD TRAVEL ........ 5-7/8"
SPINDLE NOSE TO TABLE ....... 22" MAX
TAPER IN SPINDLE ............ #50 NS
POWER DRAW BAR .............. YES
POWER RAPID TRAVERSE ........ 146 IPM
SPINDLE MOTOR ............... 30 HORSEPOWER
