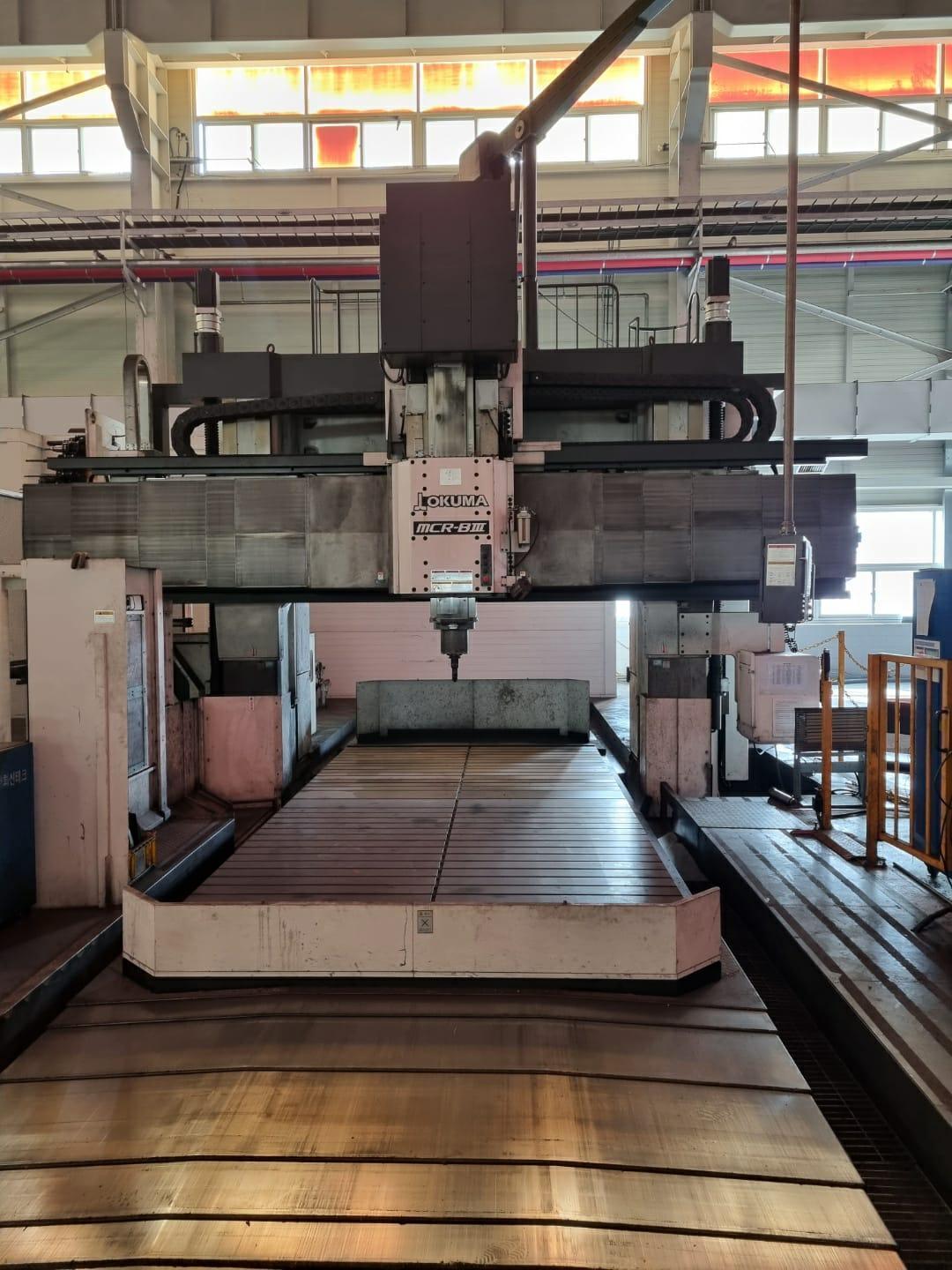

OKUMA MCR-B III 30/50 - 5-Face MACHINING CENTER, GANTRY (INCLD. BRIDGE & DOUBLE COLUMN)
Manufacturer
Model
MCR-B III 30/50 - 5-Face
Year
2013
Stock #
17996
Condition
Excellent
Keep Scrolling To Learn More
Specifications
Equipped With
OKUMA MCR-B III 30/50 - 5-Face MACHINING CENTER, GANTRY (INCLD. BRIDGE & DOUBLE COLUMN)
New 2013
SPECIFICATIONS:
Number of Axes: 4
CNC Control: yes
Type of CNC Control: OSP-P300M
Table Size: 200.78" x 82.76"
Max Table Load: 40,000 Lbs.
Effective Width Between Colums: 120.08"
X: 188.97 inches
Y: 145.66 inches
Z: 31.5 inches
W1 Axis: 39 inches
Max Distance Spindle To Table Top: 0 -72.83"
RPM: 8000
Number of Speed Ranges: 2
Taper: BT 50
Automatic Tool Changer: 72 Station ATC
Automatic Head Changer: 2-Stations (AAC)
Working Feeds: 393.7 IPM
Rapid Feeds: 590.55 IPM
Table T - Slotted: Yes
Power: 40 horsepower
Dimensions: 313.8" x 480.3"
Machine Height: 269.7"
Weight: 127900 pounds
Automatic Attachment Changer (ACC):: Two Types Listed Below: Yes to all
72 position Automatic Tool Changer (ATC)
ACC - Automatic Head Changer -2
Oil mist
scale feedback system - X,Y,Z
Super-NURBS X,Y,Z,B,C (high speed, high precision)
TAS-S&TAS-T (thermo-friendly concept)
Tool breakage detection
Auto tool length offset for touch sensor
Chip Conveyor
Through Spindle Coolant
