KNUTH PLASMA-JET COMPACT PLASMA CUTTING MACHINE
Year
Not provided
Stock #
16316
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Plasma-Jet Compact 1530 H | Plasma-Jet Compact 2040 H | Plasma-Jet Compact 3060 H | |
|---|---|---|---|
| Working Area | |||
| Cutting Width | 59 in | 79 in | 118 in |
| Cutting length | 118 in | 157 in | 236 in |
| Table height | 24 in | ||
| Table load capacity | 84 lbs/ft? | ||
| Rapid feed | 709 in/min | ||
| Weight (without plasma source) | 4,950 lbs | 7,810 lbs | 17,600 lbs |
- The Plasma-Jet TrueCut series set themselves apart from the Plasma-Jet Compact series by a fully integrated machine frame that is connected to the table via a bottom plate, so the machine can be transported in one piece and requires minimum space
- If small plasma sources (e.g. Powermax) are used, they also are stored on a shelf inside the frame
- The standard equipment includes the same high-quality components as the larger series: dual-drive bridge, high-quality linear guides, dynamic AC servo-drives, helical gears, automatic torch height control, magnetic cutter head holder serving as collision guard, optimum cutting data preset in the control.
- These machines provide the same excellent cutting performance as the Plasma-Jet TrueCut series
- Table is prepared for filter system (automatic closure control)

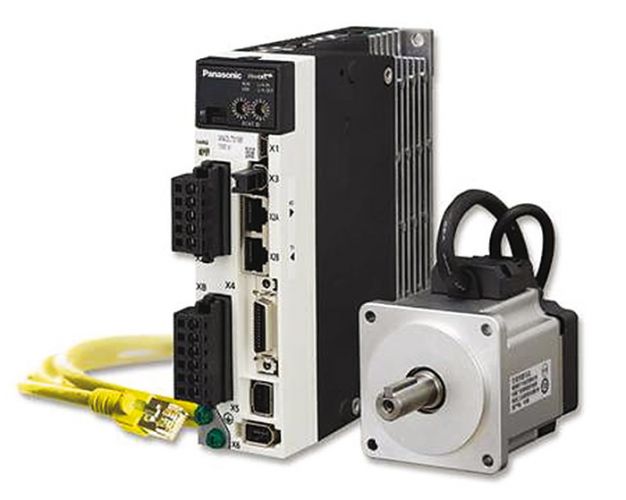

- Panasonic servo-motors and drives
- Automatic torch height control with Hypertherm THC sensor
- Cutter torch with magnetic coupling and crash sensor
- Hypertherm Edge Connect CNC Unit
- 19 ÓTouchscreen von ELO
- Ethercat-E
- Laser pointer

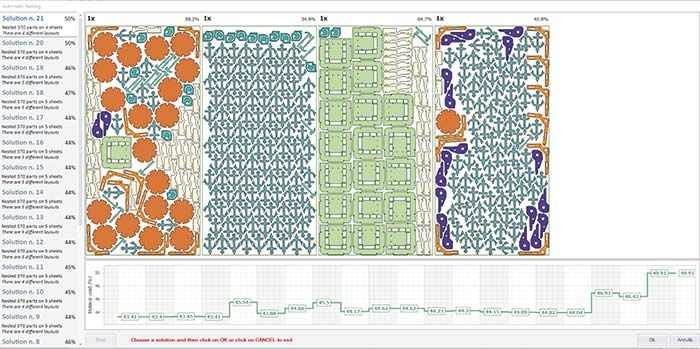

- Libellula Wizard PRO
- Libellula.CAD 2D
