Equipped With

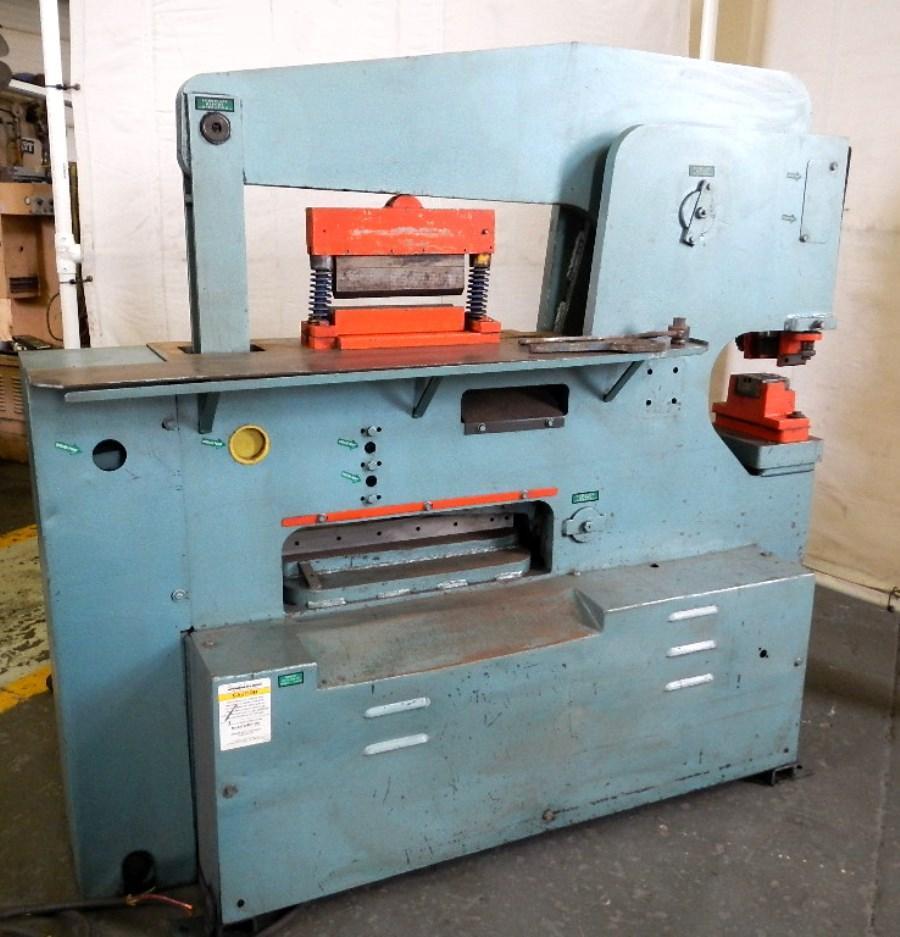

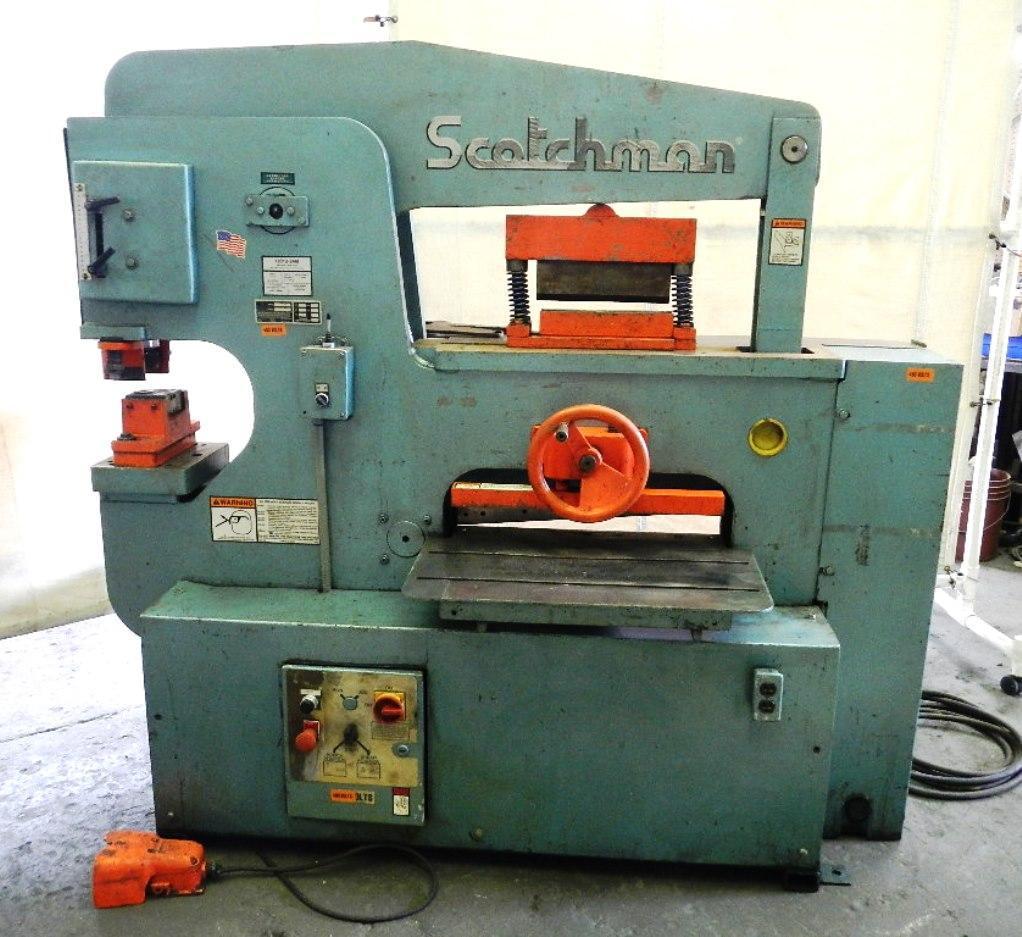

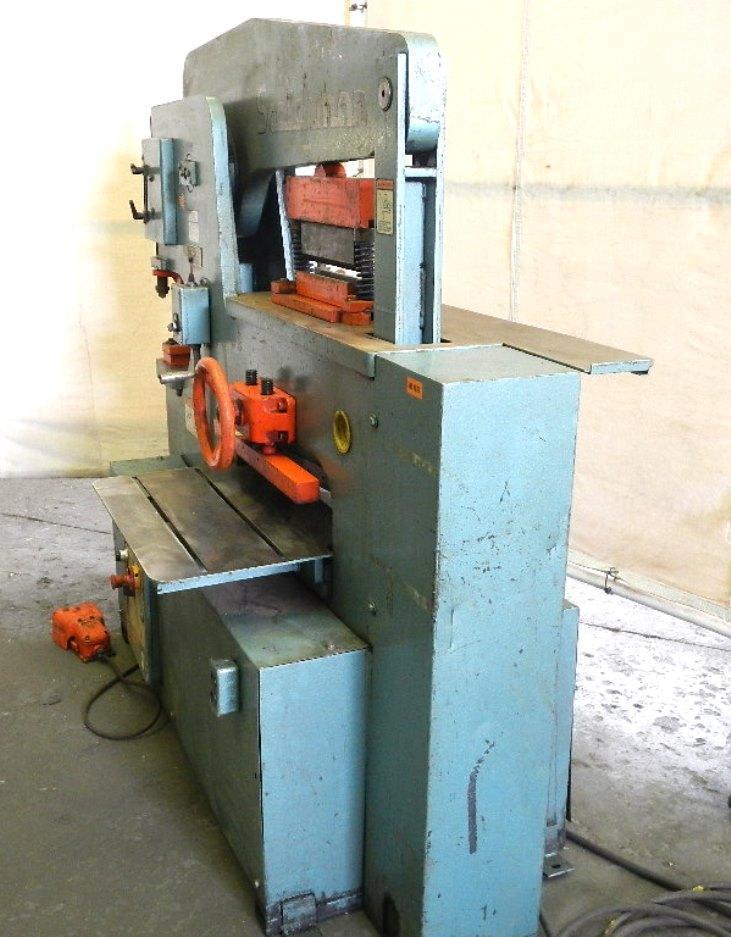

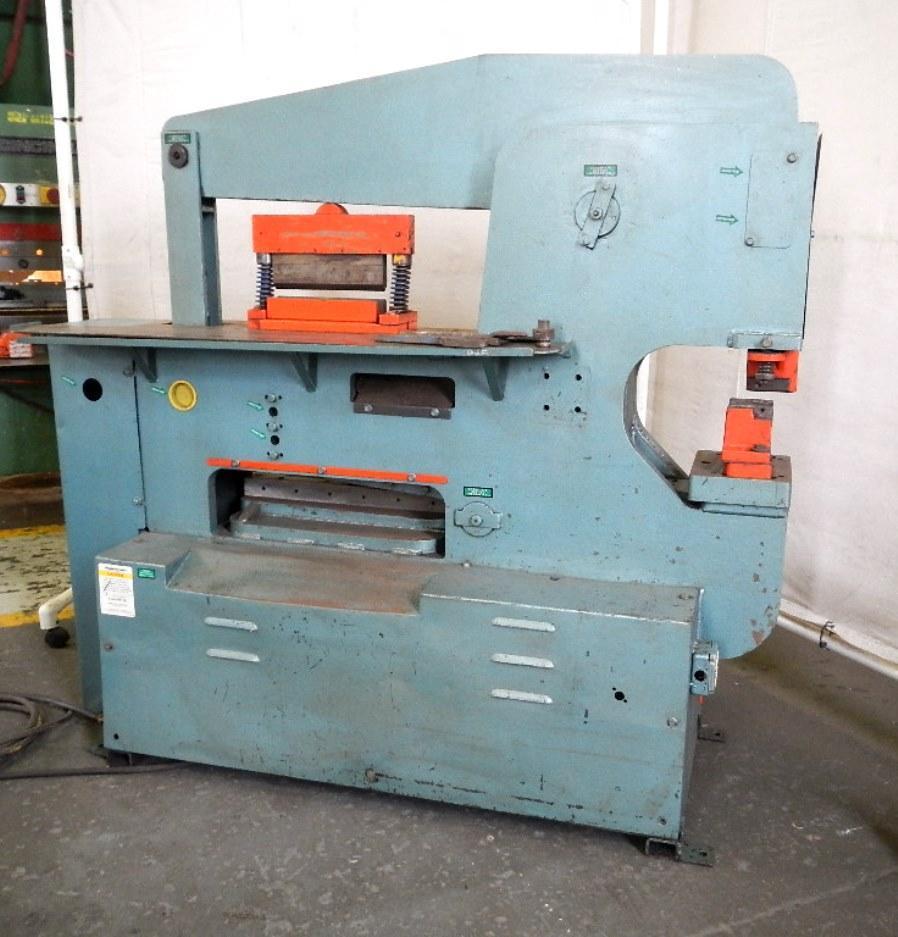

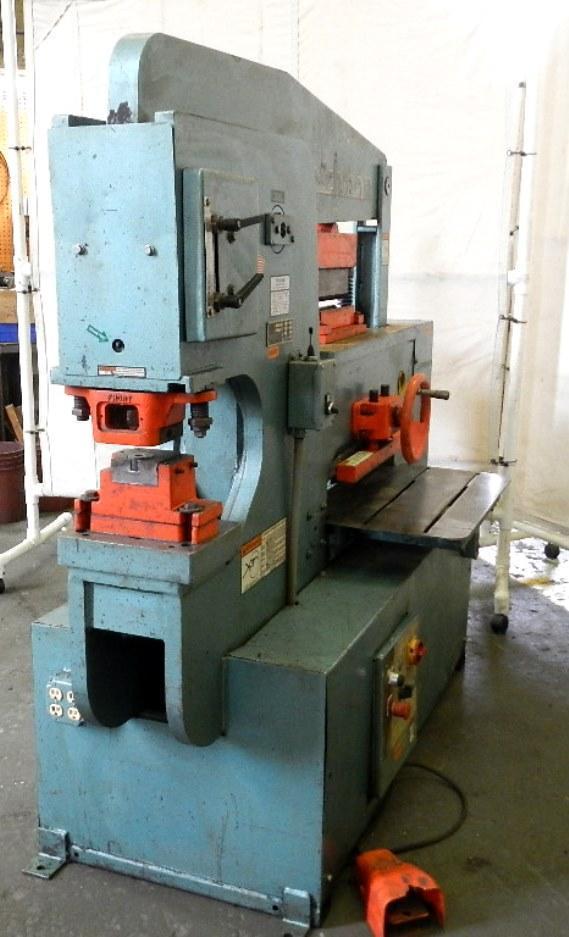

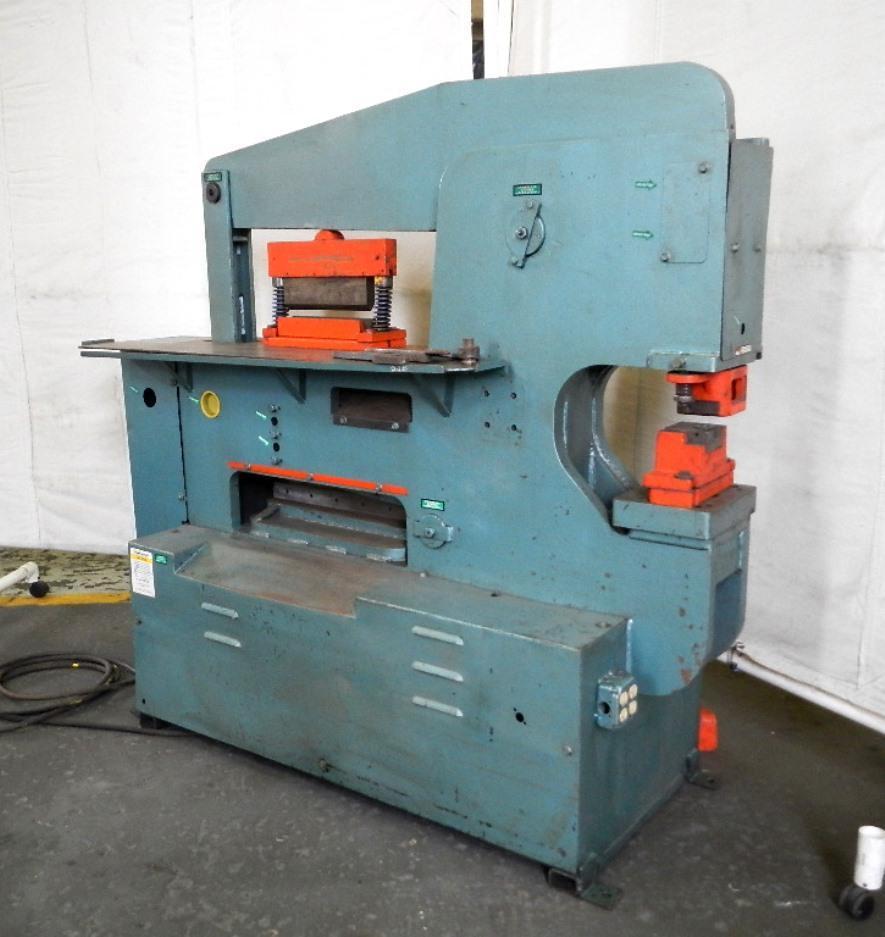

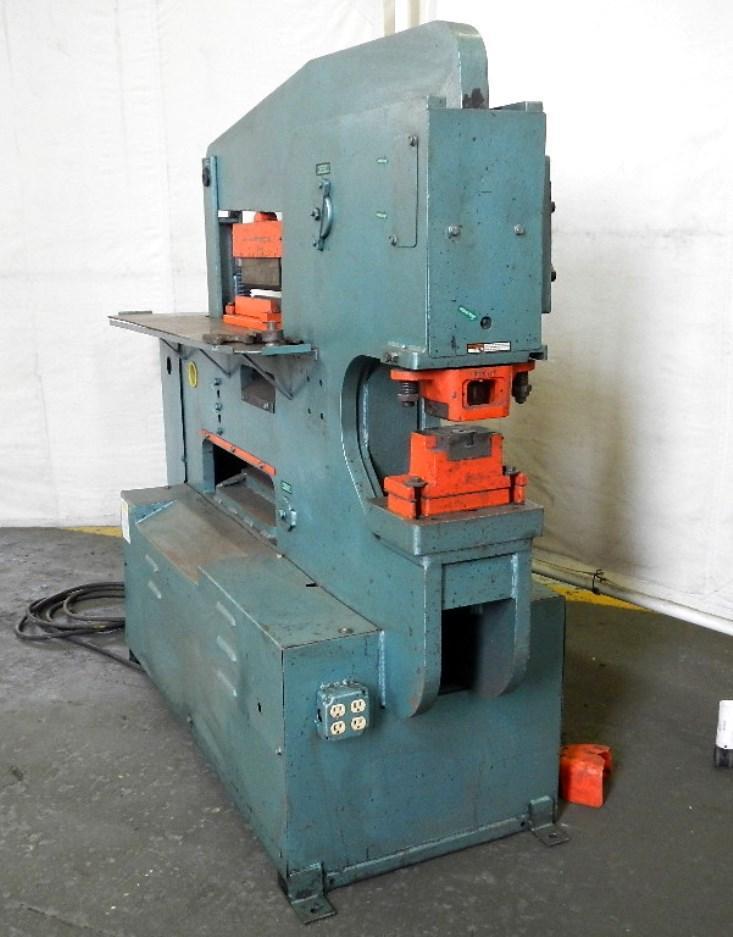

SCOTCHMAN MODEL 12012-24M HYDRAULIC IRONWORKER

New 1996

SPEICIFICATIONS:
Punching Capacity 120 Ton
1-1/2" In 1"
Special Tooling 4" Maximum Diameter
Throat Depth 12"
Flat Bar Shear 24" Length
1" x 12"
3/4" x 20"
5/8" x 18"
1/2" x 24"
Angle Shear, 90 Degrees 6" x 6" x 1/2"
45 Degrees 4" x 4" x 1/2"
Offset Die Holder Max. 40 Ton
Strokes Per Minute, Light Material 37 SPM
Strokes Per Minute, Heavy Material 25 SPM
Standard Motor 5 HP/230/460/60/3
Approximate Overall Dimensions 28"W x 77"L x 73"H
Approximate Weight 5,200 Lbs.

Machine is equipped with remote foot pedal operation, press brake attachment, adjustable stripper, adjustable stroke control
