Equipped With

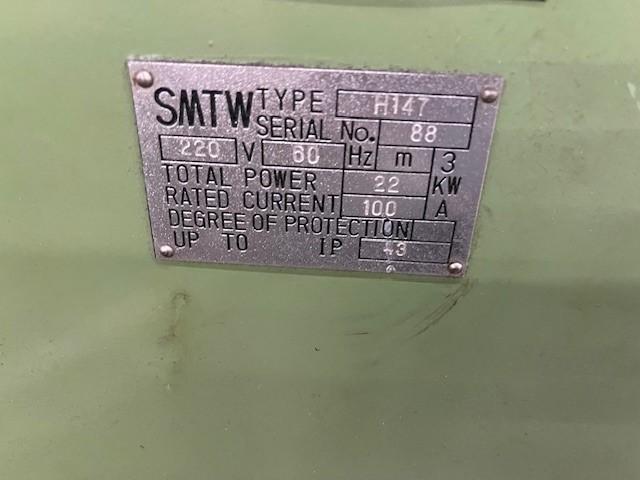

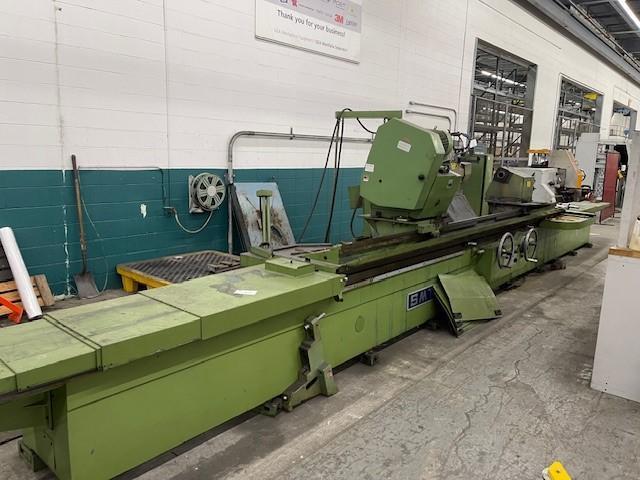

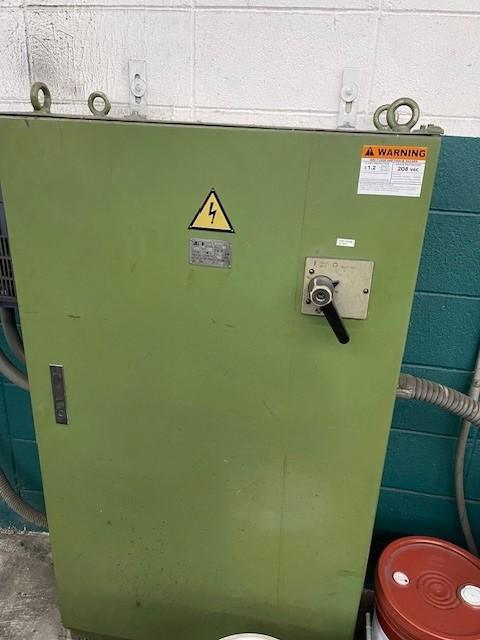

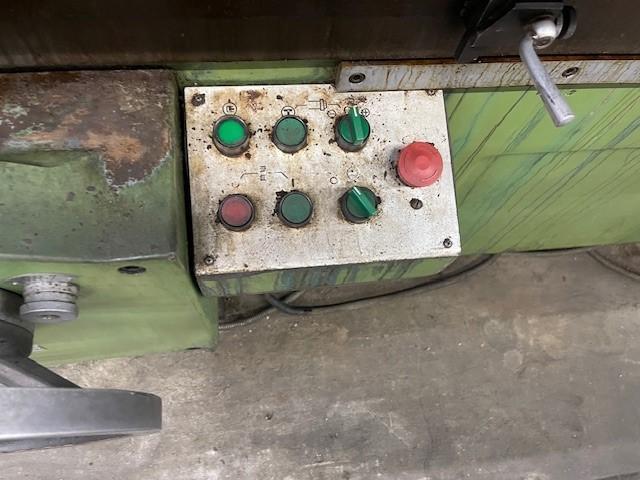

SMTW 25" x 160" MODEL H147  HYDRAULIC CYLINDRICAL GRINDER

NEW 1985

SPECIFICATIONS:

RATED WORK PIECE CAPACITY 25" X 160"

CENTER HEIGHT 13.8"

MAX. WORK LOAD 3,000 LBS

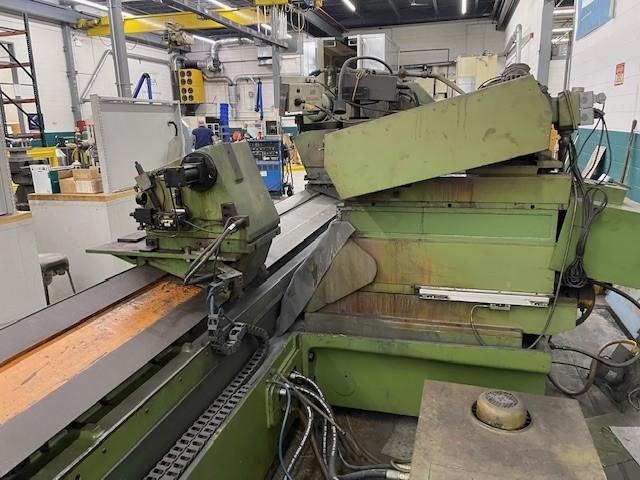

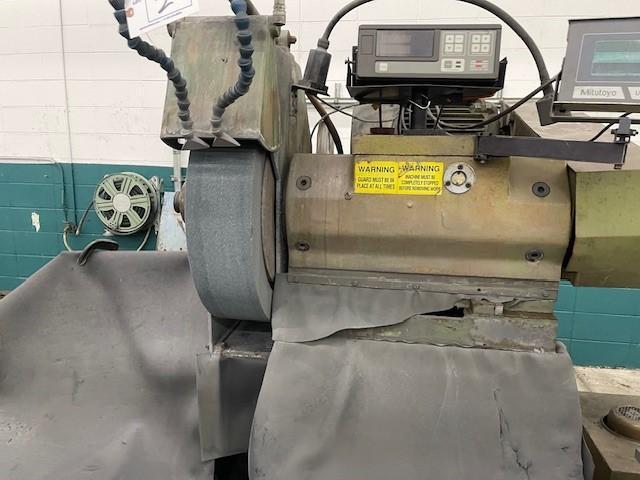

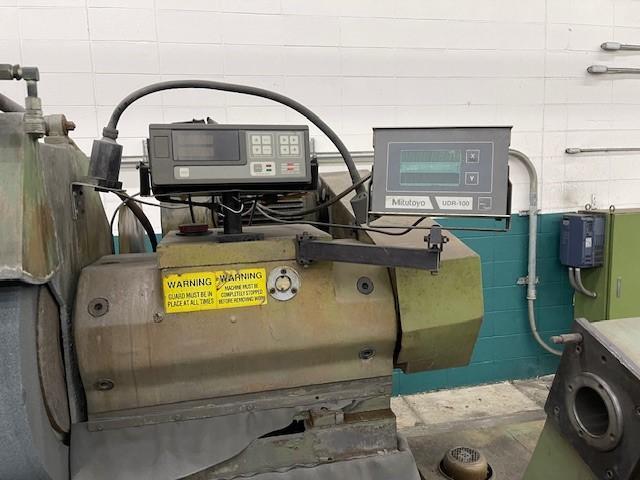

*SPINDLE HEAD AREA OF MACHINE*

SPINDLE HEAD MOTOR 20 HP  (15 KW)

WHEEL SIZE MAX. 30" X 6" WIDE X 12" HOLE

WHEEL SPEED 890 RPM

SURFACE SPEED 6990 FPM

RAPID TRAVEL 30 FPM

HANDWHEEL REV. 0.05"

HANDWHEEL DIV. .0001"

MAX. TRAVEL RP 4"

MAX. TRAVEL HW 10"

SPINDLE BEARINGS 4 SHOE HYDRODYNAMIC

SPINDLE TAPER 1.5 TAPER

OIL RESERVOIR 12 GAL @ 2 ISO VISCOSITY GRADE

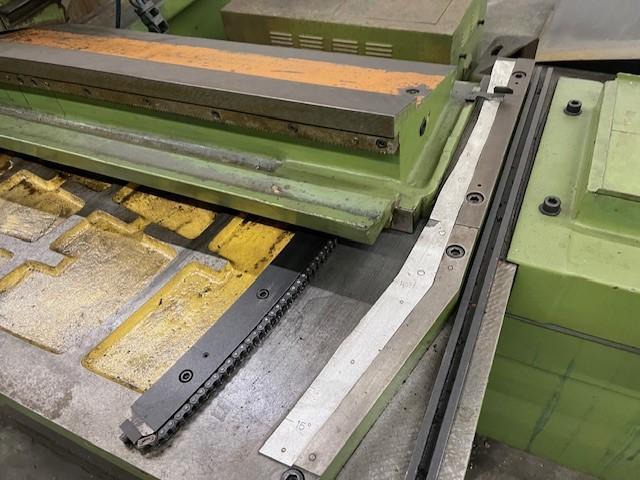

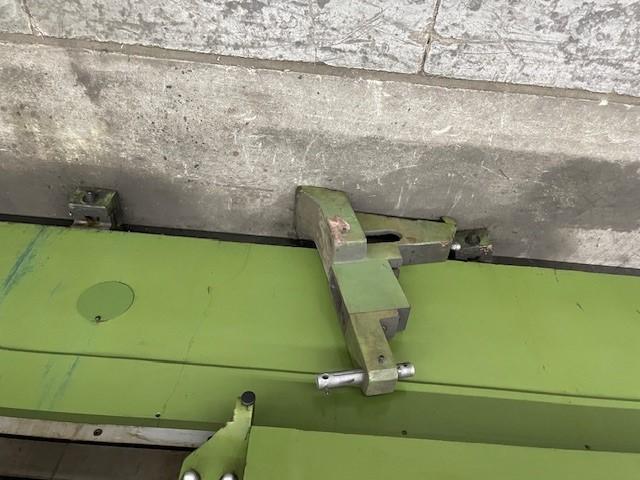

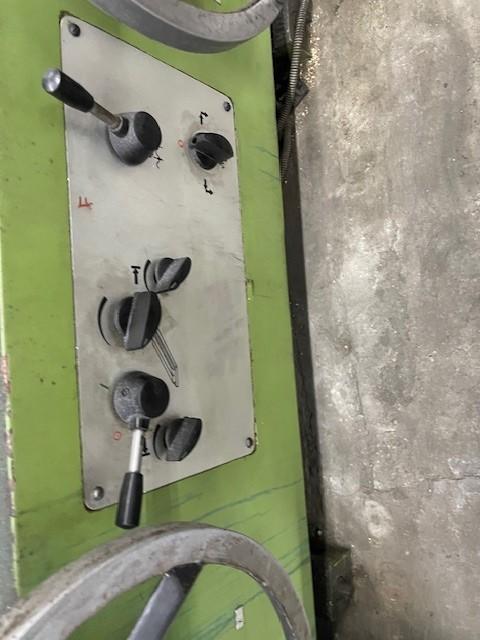

*WORK TABLE AREA OF MACHINE*

SWIVEL -1 DEGREE/+3 DEGREES

FEED RANGE 4 TO 157 FPM

MAX. TRAVEL 160"

TABLE ANGLE 20 DEGREES SLANT

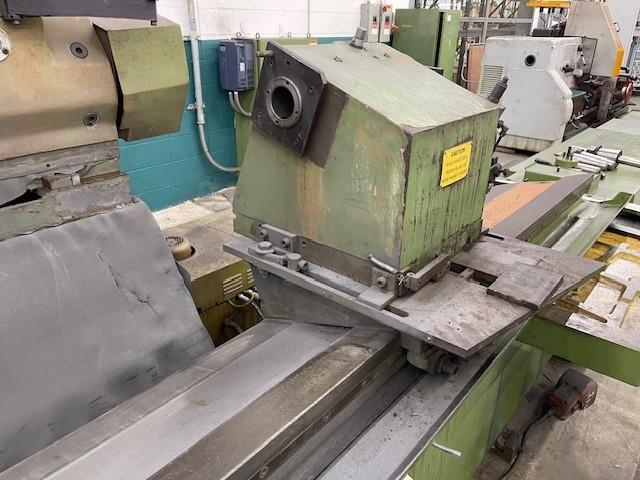

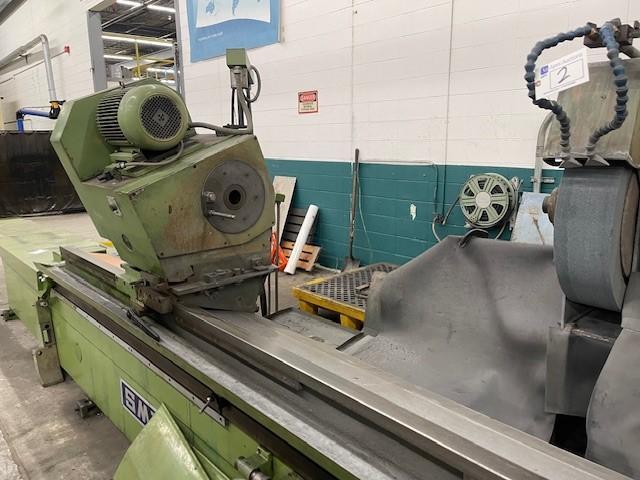

*WORKHEAD AREA OF MACHINE*

MAIN MOTOR ON WORK HEAD 4/6 HP (2 SPEED)

TAPER IN WORKHEAD 6 MT

WORK HEAD RPM 22,44,60,84,120,168

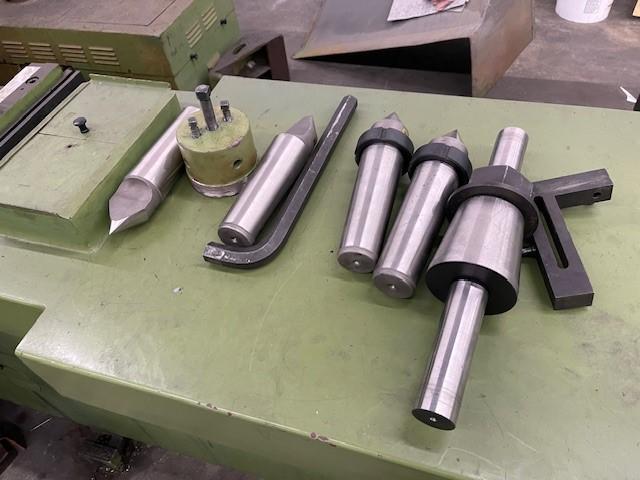

*TAILSTOCK*

TAPER 6 MT

QUILL TRAVEL 2.76"

DRESSING SOLID MOUNT

*HYDRAULIC UNIT*

1.5 HP MOTOR

FLOW RATE 7 GPM

PRESSURE 142 TO 184 PSI

RESERVOIR CAPACITY 55 GALLONS 32 ISO VISCOSITY GRADE
