Equipped With

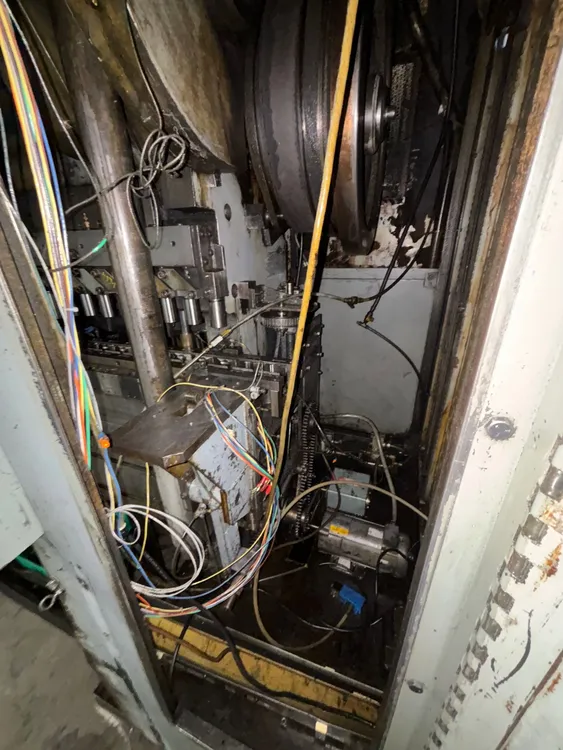

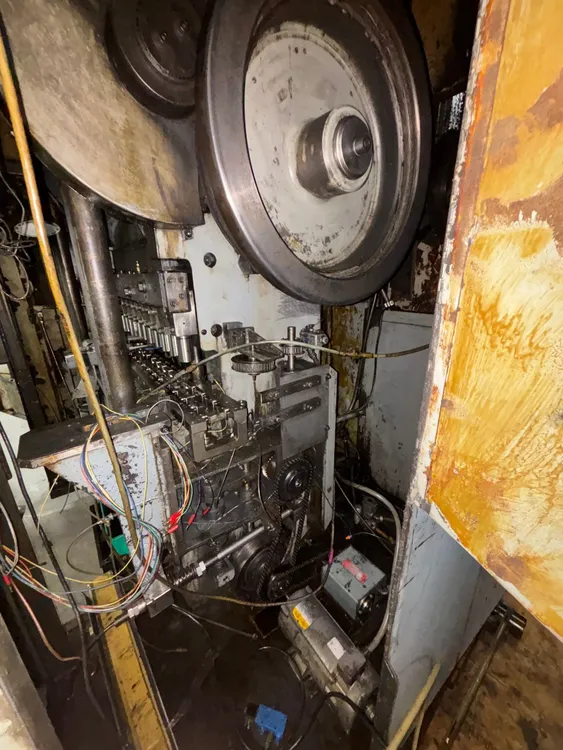

US Baird 4L37 Transfer Press 14 Op Die Set 3 Row Stagger Feed


Minster Air Clutch / Brake Combo

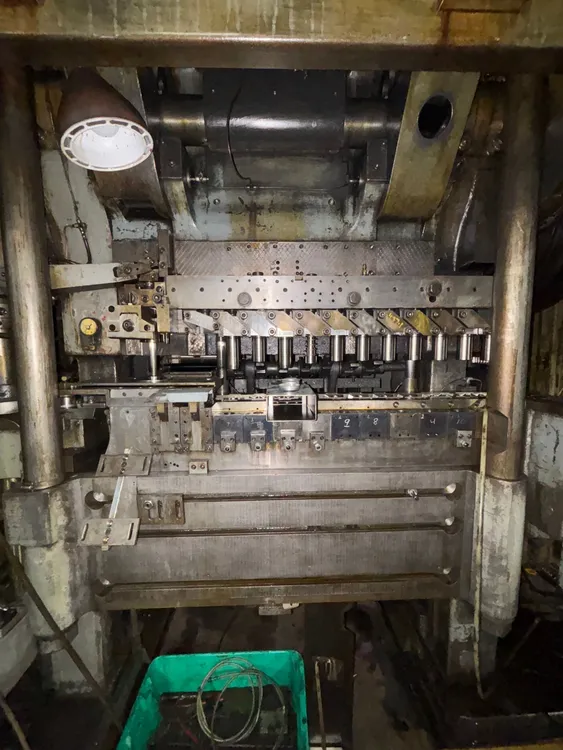

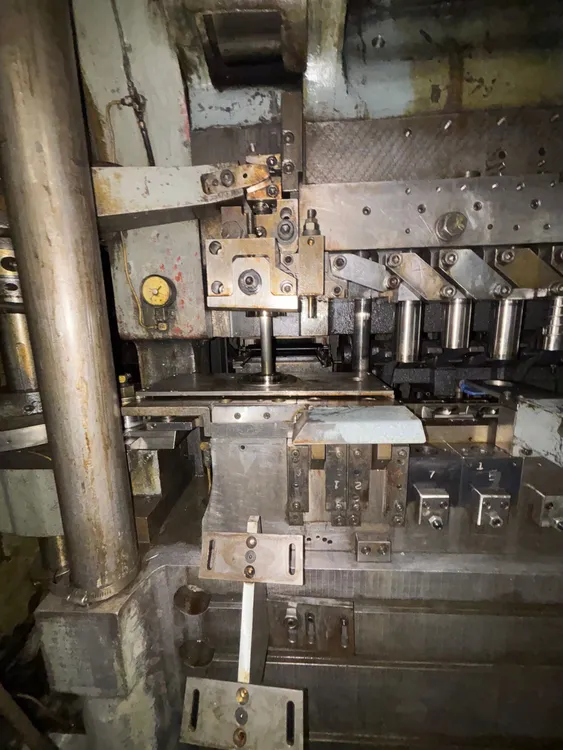

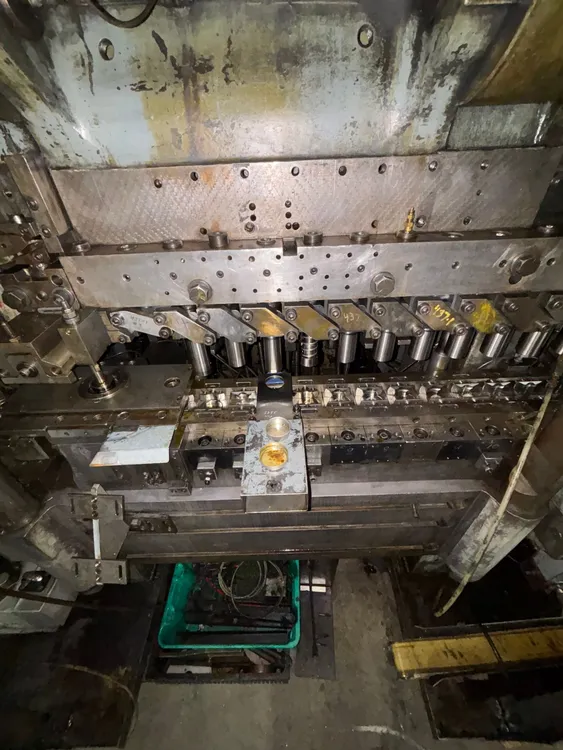

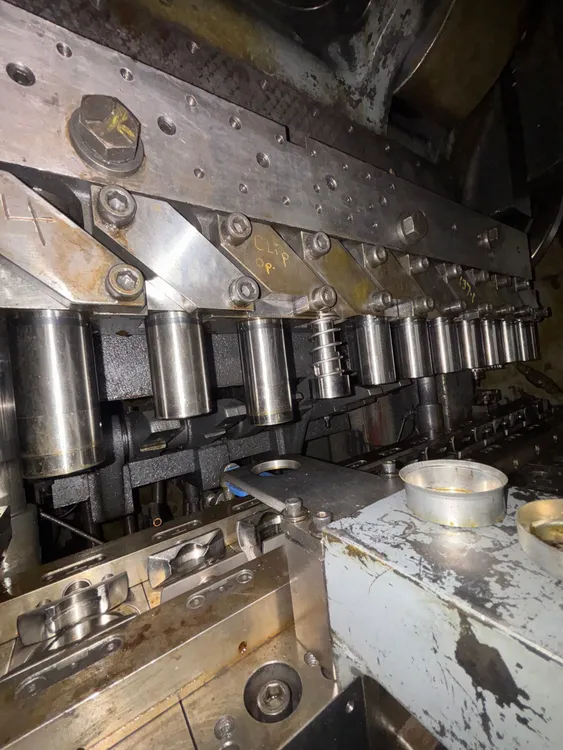

12 Station US Baird Die Set

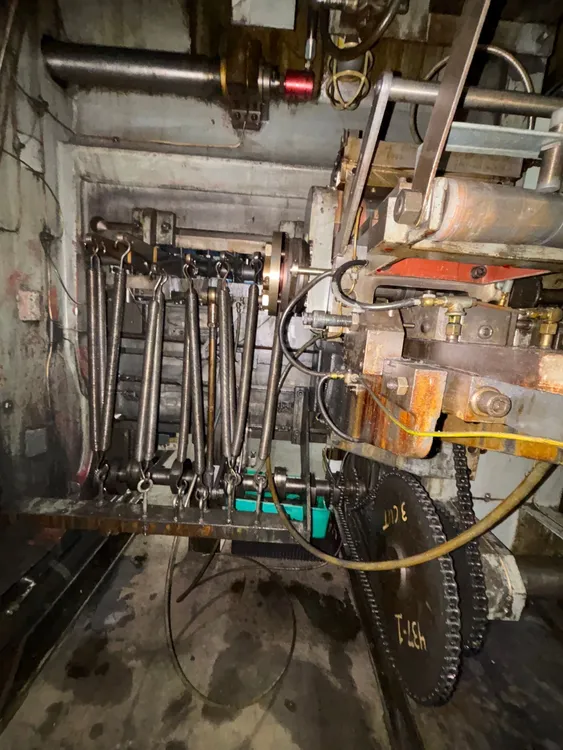

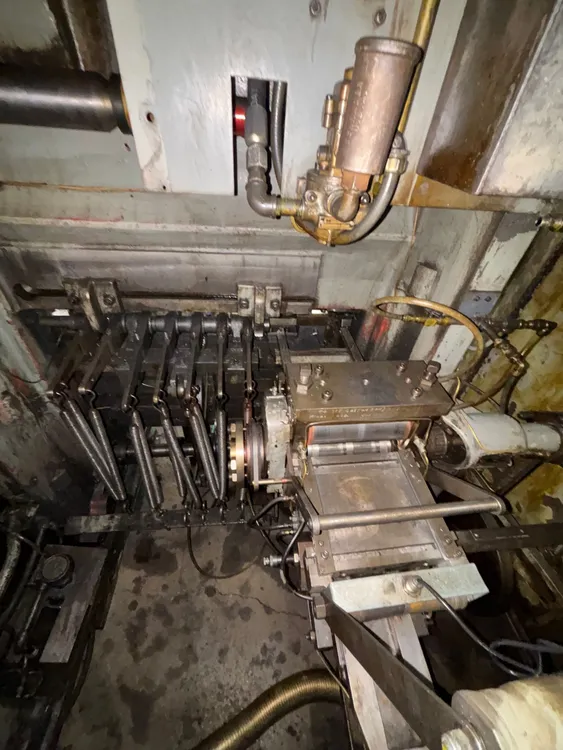

Stripper Fork System on Back Rack with 6 Forks and Rack Pull Down
* Upper rear of press frame mounted - new style

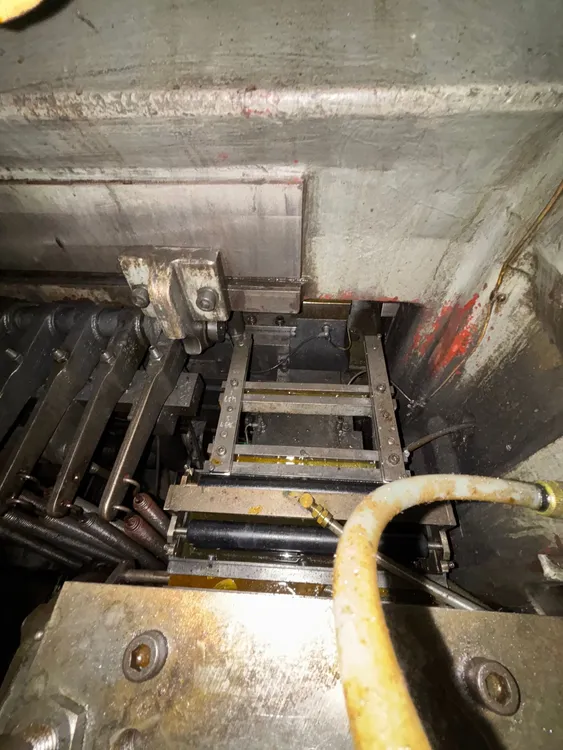

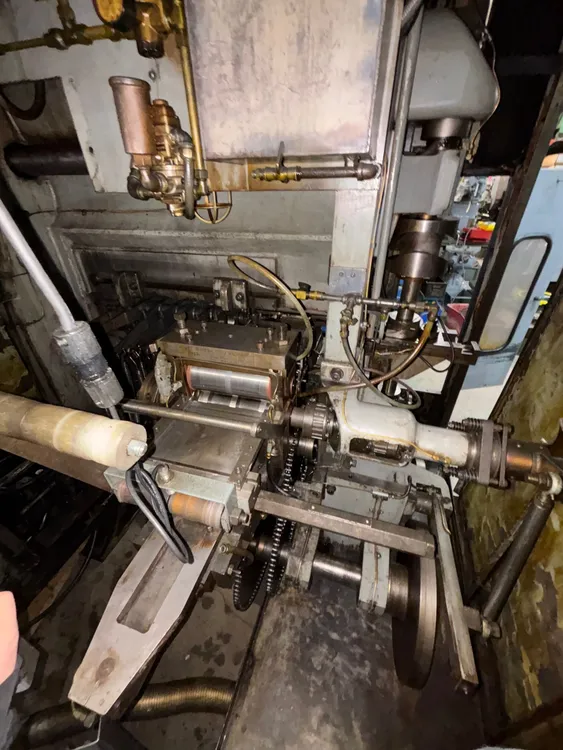

US Baird 2 Row Stagger Mechanical feed - excellent
Beader system on end of press / end of slide. Parts carried to end of slide and cam activated system beads, pierces or assembles parts at end. Expensive handy work there.
Eddy Current variable speed motor

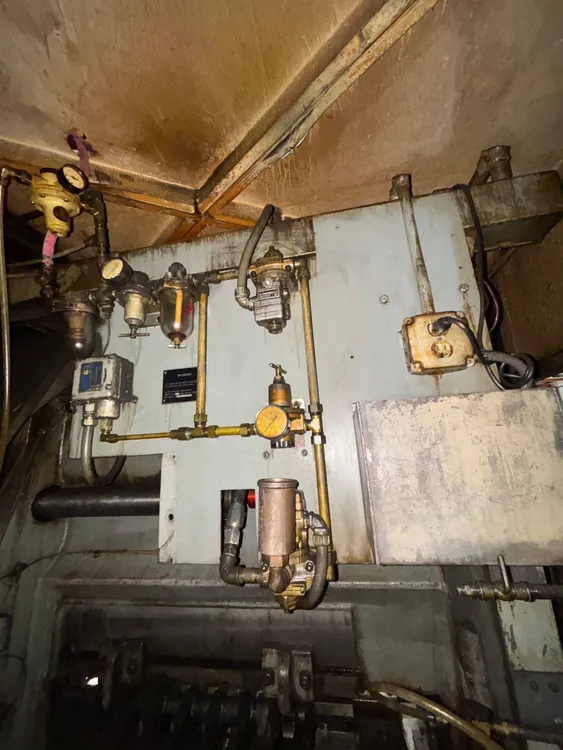

Refurbished Oil System! Bijur system has been updated with new lines, meters and pump
Built in Die protection 13 station probe system
Steel sound enclosure
Press is in Superior overall condition. Press was either refurbished in the last 10 years or not used much in it's life. Everything on it is like new. Gibs and Ways are mint. Bearing surfaces are fresh.

SPECIFICATIONS:
Capacity                                                           45 Tons
Stroke                                                              5"
Approximate Dimensionts                               100" Wide x 70" Deep x 106" H
Approximate Weight                                        15,500 Lbs.
