Equipped With:

32” 4 Jaw Chuck

Live Center Built into Tailstock

Hardened and Ground Bed Ways

Coolant system

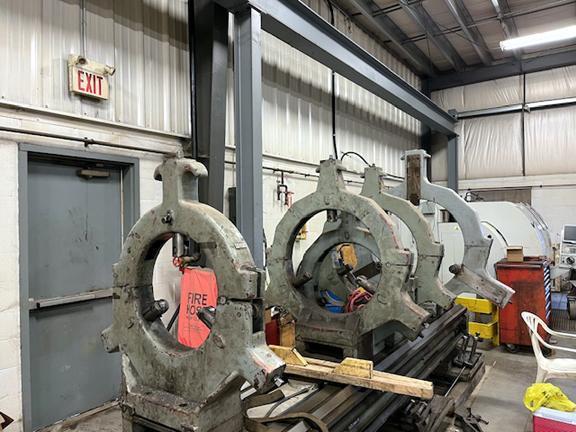

5 Roller Type Steady Rests

Power Rapid Traverse

Maximum Distance Between Centers:

Swing Over Bed:

Swing Over Cross Slide:

Swing in Gap:

Length of Gap from Spindle Nose:

Bed Width:

Spindle Hole Diameter:

Spindle Nose:

Spindle Speeds: (24)

Feeds             – Longitudinal

Cross Slide Feeds:

Top Slide Feeds:

Threads         - Inch (61)

            - Metric (62)

Cross Slide Travel:

Tailstock Spindle Diameter

Tailstock Travel: 12”

Maximum Weight Between Centers Unsupported

Maximum Weight Between Centers With (1)

Maximum Weight Between Centers With (2)

Main Motor:

Approximate Dimensions:

Approximate Weight:

393.7”

53”

41”

65”

22”

25.98”

4.72”

A1-15

5 – 500 RPM

0.0035” - .400” TPR

0.0017 to .200 TPR

0.0008 to .100 TPR

½ to 60 TPI

1 – 120 mm/Rev

20-3/4”

(No. 6 Morse Taper) 7-1/2”

12”

20,000 Lbs.

Steady: 22,100 Lbs.

Steadies: 26,500 Lbs.

55 HP

65.5’ (L) x 9.41’ (W)

42,240 Lbs.
