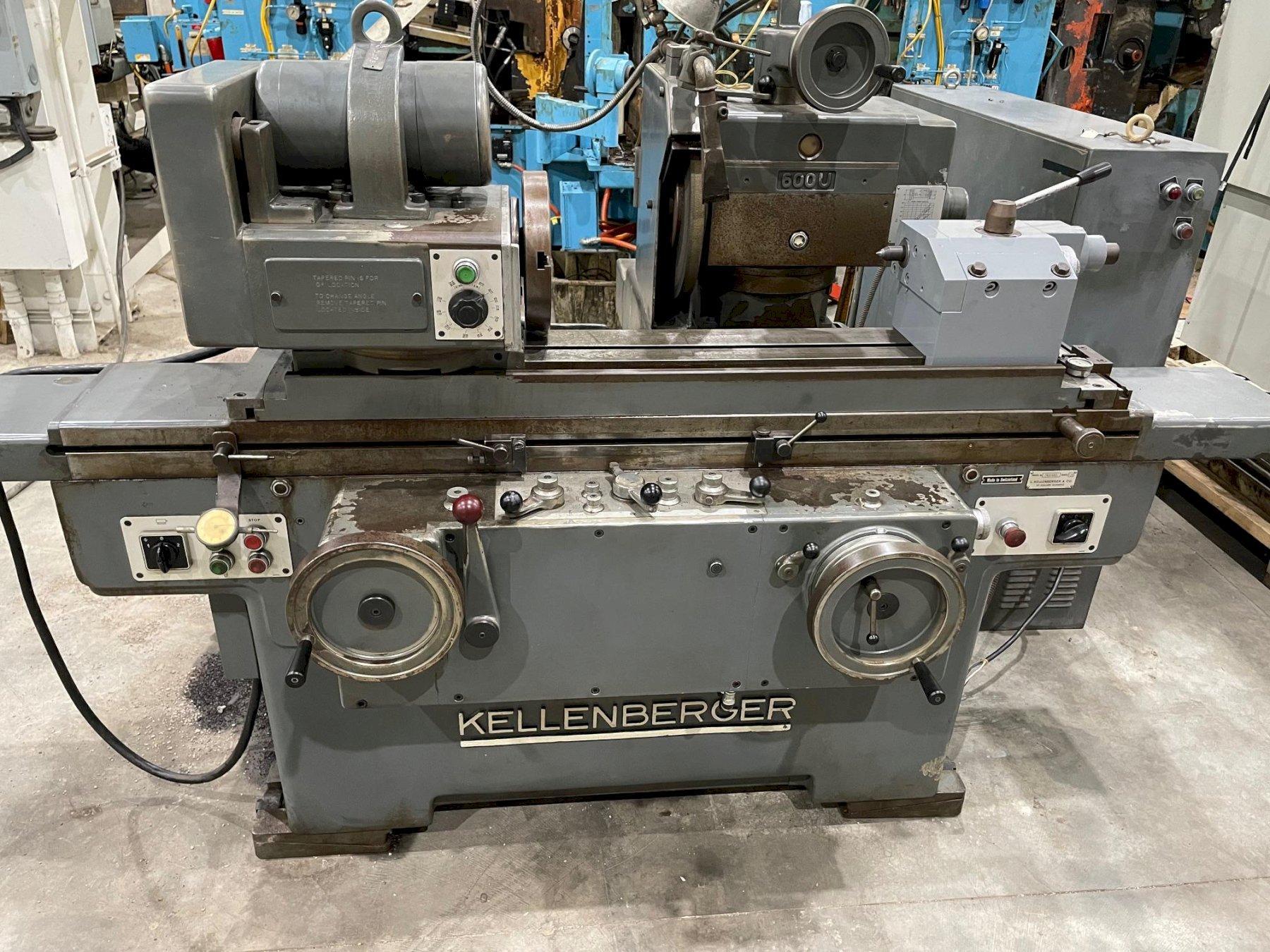

 USED KELLENBERGER MODEL 600U ID/OD UNIVERSAL HYDRAULIC CYLINDRICAL GRINDER
New 1978

Equipped with:

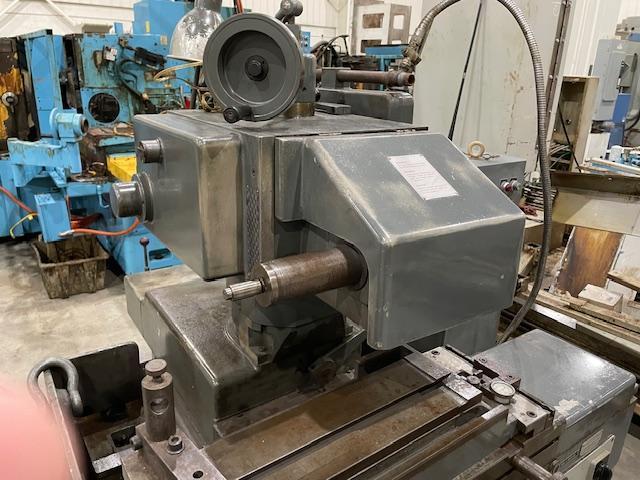

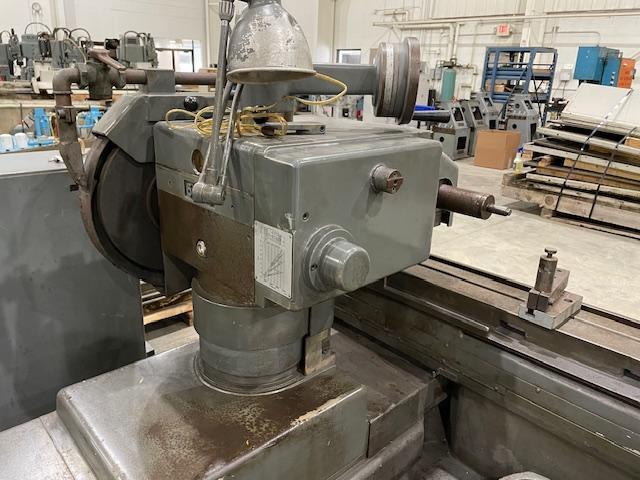

Swing-around spindle, ID & OD Grinding Spindles
Tailstock for OD Grinding
4" Risers for Workhead and Wheelhead for Increased Swing for ID Grinding, 18" Swing with Risers Installed
Table mounted dresser
Faceplate, 10” dia.
Floorspace Requirement:  FB X RL  88” X 104"
Height:  60”
Est. weight:  6,000#

Capacity:  18” X 24”

Distance between centers:  24”

Swing over table:  10” without Risers

Max. table travel:  35”

Table size:  5 ½” X 45 1/2”

Table swivels:  +/- 11 degrees

Table speeds from 0 to 240 IPM

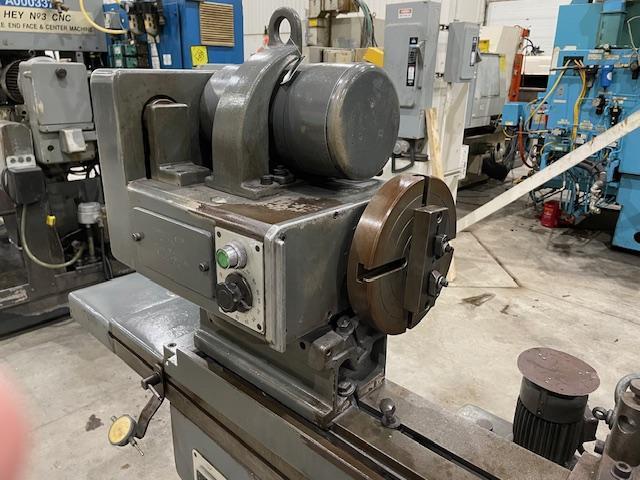

Workhead speeds from 10 to 400 RPM

Workhead swivels:  90 degrees

Grinding wheel size:  16” X 2” W X 5” Hole Grinding wheel speeds:  1500, 1700, 2200 RPM
