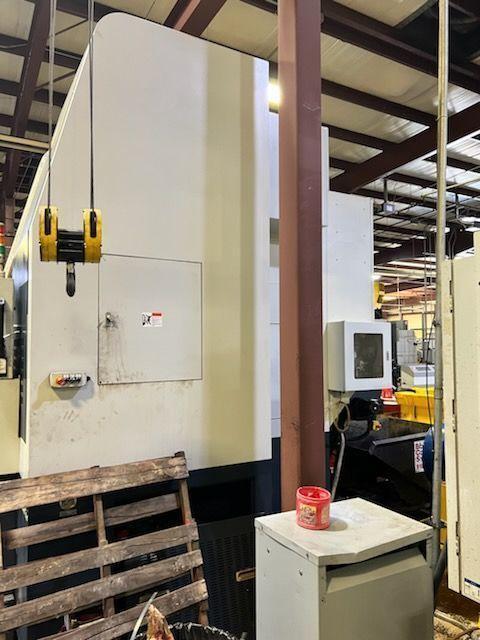

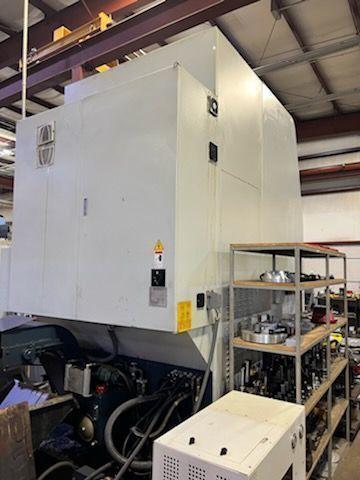

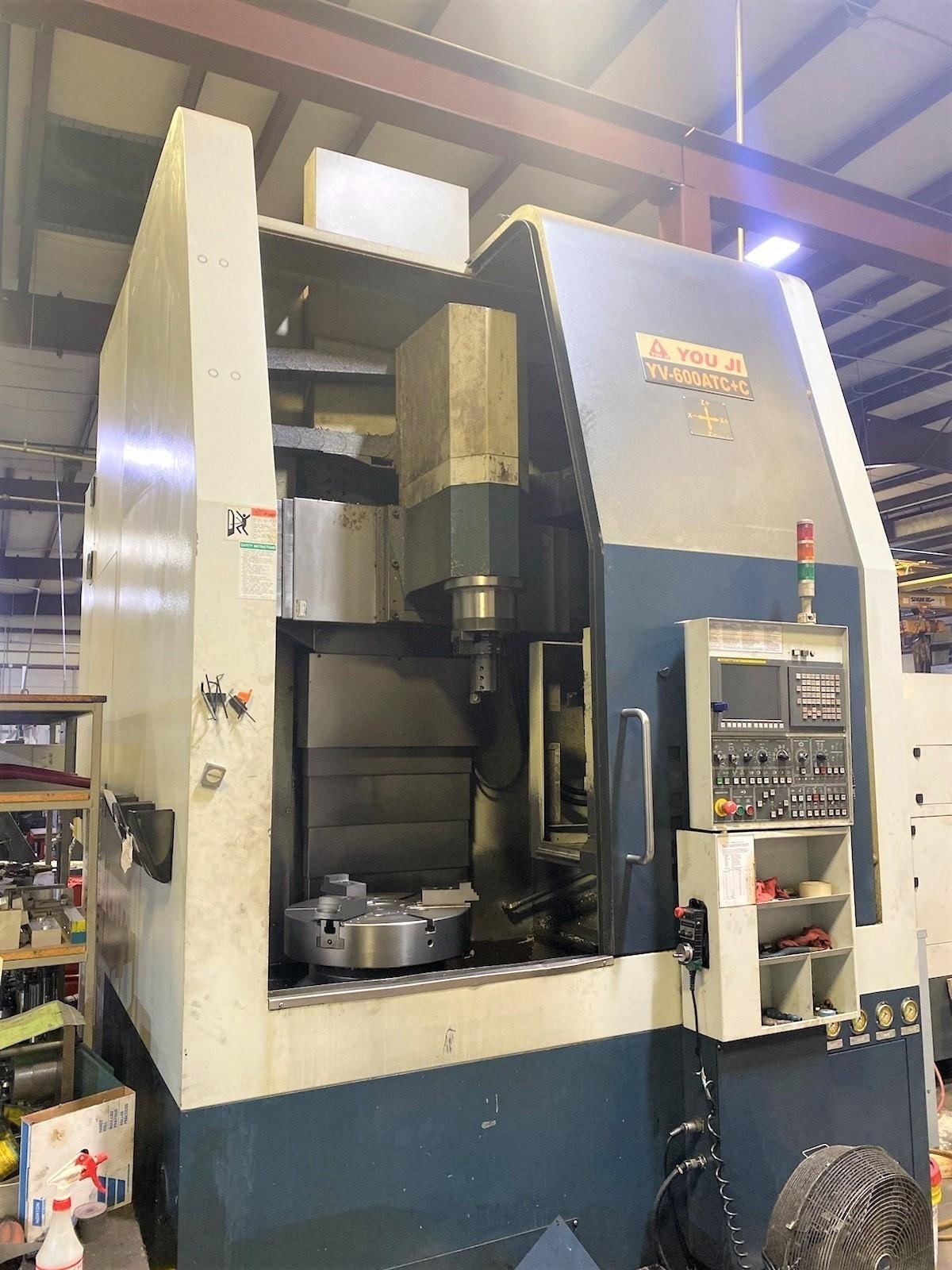

YOU JI MODEL YV-600ATC+C CNC VERTICAL BORING MILL WITH LIVE TOOLING
Year
2014
Stock #
17876
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
YOU JI MODEL YV-600ATC+C CNC VERTICAL BORING MILL WITH LIVE TOOLING
New 2014
Description:
Live Milling, 32" Table, Fanuc CNCMaximum swing 33.54"
Standard turning diameter 24.4
Maximum turning diameter 33.5
Maximum cross travel (X axis)-1.97 ; + 22.4"
Maximum longitudinal travel (Z axis) 31.5 Maximum cutting height 25.6
Spindle Speed: 1500 RPM
Spindle acity: 12 TRT
Spindle Motor (Fanuc P Series)30 HP Double Wound-(More torque at lower RP
Spindle Drive 2 speed ZF planetary gearbox
Spindle nose-A2-11
Spindle RPM-0-1500
Spindle bearing diameter 8.66
Spindle inside taper M.T. 7

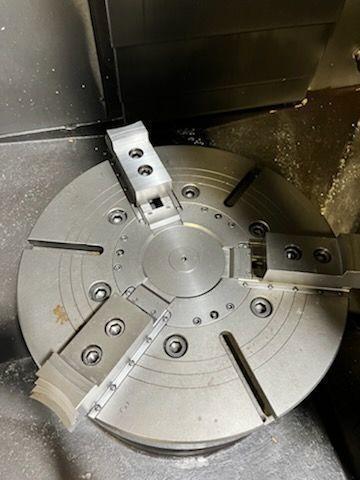

Hydraulic chuck-24 3-Jaw
ATC
Tool positions-12
ATC type-
Umbrella / Electric
Tool mounting#50 taper
O.D. tool shank size-1.25
I.D. tool shank size-2.0/store/item.asp?ITEM%ID=7432&DEPARTMENT%ID=135
Tool change time -30 Seconds
Ballscrews and axis motors
Z axis ballscrew diameter-50mm (1.96) x 10 pitch
X axis ballscrew diameter -50mm (1.96) x 10 pitch
Ballscrew type-Class 3 double nut
Ballscrew mounting type -Pre-loaded, double anchored
X-Z servo motor HP- X 6.5 HP, Z 6.5 HP

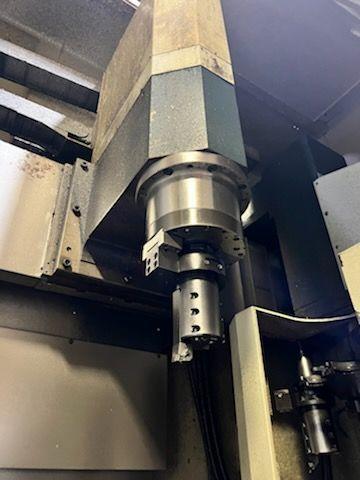

C axis and Live Tools (option)
Spindle motor-10HP
Spindle RPM-2400 RPM
Tool shank type -BT-50
C axis indexing .001 degree
Feeds
Rapid Traverse Rate X, Z 787, 787 IPM
Cutting feed rate 0.01 - 315 IPM
Positioning accuracy +/- .0003 full stroke
Repeatability-+/- .0002
